Carburetor parts > Clutch > Clutch release mechanism

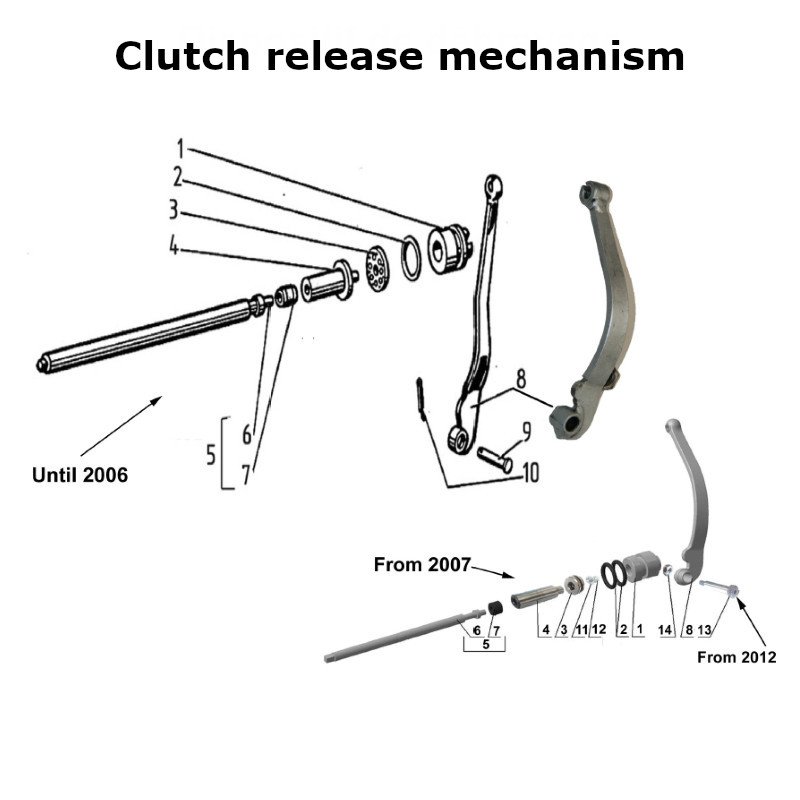

Ural part n°1 on the diagram of the clutch release mechanism
Clutch release slider 2007-2016 for the clutch release mechanism (carburetor part)
Part number : IMZ-8.104-03206-01
Please note that delivery times may vary depending on available stock.
Ural part n°2 on the diagram of the clutch release mechanism
O-ring for the clutch release mechanism (carburetor part)
Part number : 7203207-А
Please note that delivery times may vary depending on available stock.
Ural part n°3 on the diagram of the clutch release mechanism
Clutch release bearing for the clutch release mechanism (carburetor part)
Model year until 2006 : Part number : 7203209
Model year since 2007 : Part number : T30705
Please note that delivery times may vary depending on available stock.
Ural part n°4 on the diagram of the clutch release mechanism
Clutch release rod tip since 2007 for the clutch release mechanism (carburetor part)
Part number : IMZ-8.104-03211
Please note that delivery times may vary depending on available stock.
5 - 2 Variants
6 - 2 Variants
Ural part n°5 on the diagram of the clutch release mechanism
Clutch release rod and seal assembly for clutch release mechanism (carburetor part)
Model year until 2012 : Part number : 7203214-03
Model year since 2013 : Part number : 7203214-10
Please note that delivery times may vary depending on available stock.
Ural part n°6 on the diagram of the clutch release mechanism
Clutch release rod for the clutch release mechanism (carburetor part)
Model year until 2012 : Part number : 7203212-30
Model year since 2013 : Part number : 7203212-40
Please note that delivery times may vary depending on available stock.

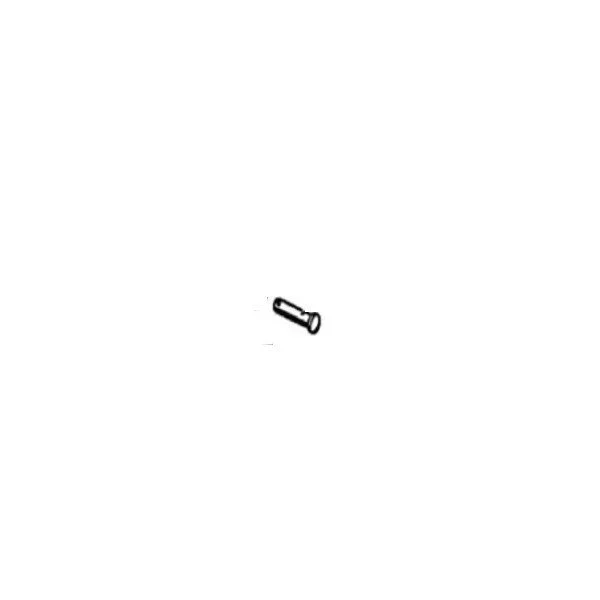

Ural part n°9 on the diagram of the clutch release mechanism
Clutch release lever axle for the clutch release mechanism (carburetor part)
Part number : IMZ-8.1037-03203
Please note that delivery times may vary depending on available stock.
Ural part n°10 on the diagram of the clutch release mechanism
Cotter pin 2x20 for the clutch release mechanism (carburetor part)
Part number : E03741
Please note that delivery times may vary depending on available stock.
11 - E37009
12 - E37077
Ural part n°13 on the diagram of the clutch release mechanism
Special screw 2012-2016 for the clutch release mechanism (carburetor part)
Part number : ISO 7379-12.9-8-M6x35
Please note that delivery times may vary depending on available stock.
13 - ISO 7379-12.9-8-M6x35
14 - E00869

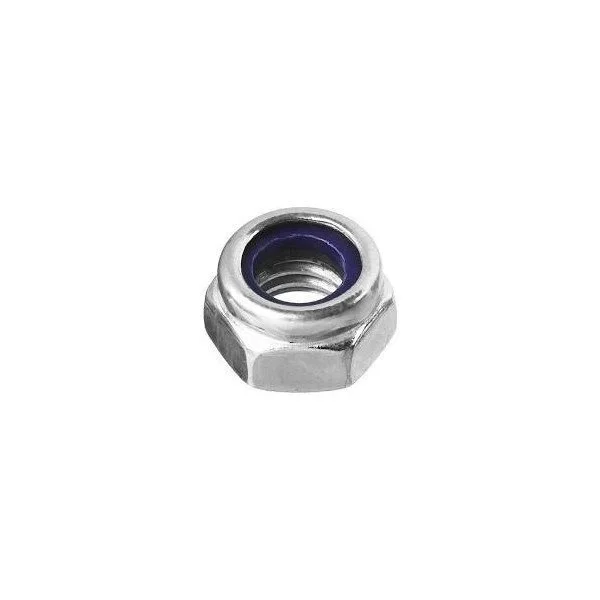

Ural part n°14 on the diagram of the clutch release mechanism
Nut M6 self-locking for the clutch release mechanism (carburetor part)
Part number : E00869
Please note that delivery times may vary depending on available stock.
2 - 7203207-А
1 - IMZ-8.104-03206-01
4 - IMZ-8.104-03211
3 - 2 Variants
8 - 3 Variants
7 - 7203213-20
Ural part n°8 on the diagram of the clutch release mechanism
Clutch release lever for the clutch release mechanism (carburetor part)
Model year until 2005 : Part number : IMZ-8.101-03205-11
Model year 2006-2011 : Part number : IMZ-8.1037-03023
Model year 2012-2016 : Part number : IMZ-8.104-03023-01
Please note that delivery times may vary depending on available stock.
Ural part n°7 on the diagram of the clutch release mechanism
Clutch release rod seal for the clutch release mechanism (carburetor part)
Part number : 7203213-20
Please note that delivery times may vary depending on available stock.
10 - E03741
9 - IMZ-8.1037-03203
Ural part n°12 on the diagram of the clutch release mechanism
Cross-head screw M4x8 for the clutch release mechanism (carburetor part)
Part number : E37077
Please note that delivery times may vary depending on available stock.
Ural part n°11 on the diagram of the clutch release mechanism
Washer DIN 125A for the clutch release mechanism (carburetor part)
Part number : E37009
Please note that delivery times may vary depending on available stock.
