Carburetor parts > Front fork > Leading link fork

N°5 Upper fork yoke for the leading link fork (carburetor part) N°5 Upper fork yoke for the leading link fork (carburetor part)
N°5 Upper fork yoke for the leading link fork (carburetor part)
87,00 €

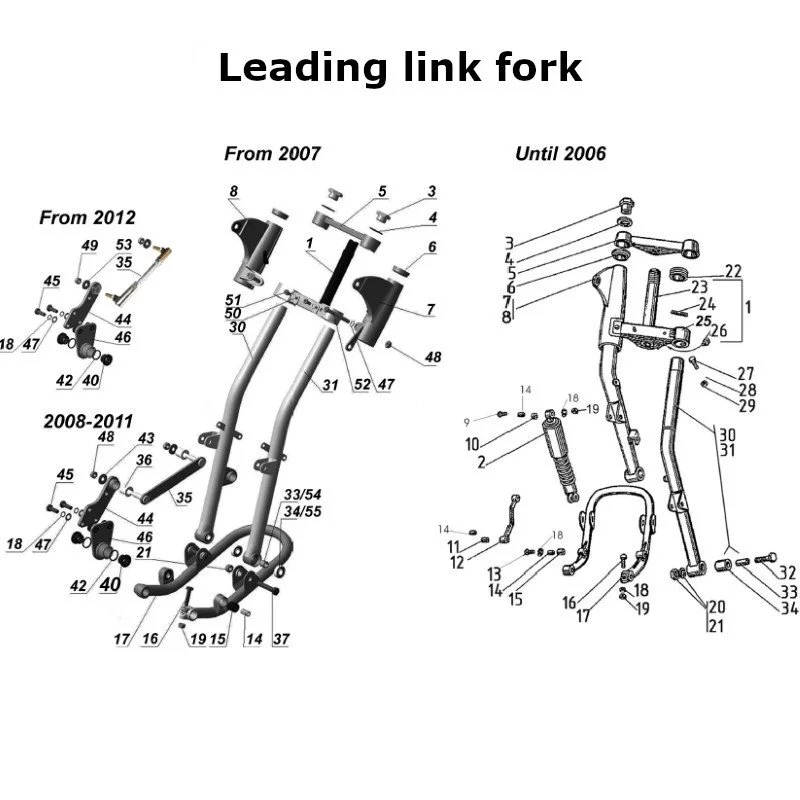

Part n°5 on the leading link fork diagram

Upper fork yoke for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08153-01

Please note that delivery times may vary depending on available stock.

N°6 Sealing ring headlight support for the leading link fork (carburetor part) N°6 Sealing ring headlight support for the leading link fork (carburetor part)
N°6 Sealing ring headlight support for the leading link fork (carburetor part)
9,00 €

Part n°6 on the leading link fork diagram

Sealing ring headlight support for the leading link fork (carburetor part)

  • Part number : 7208157

Please note that delivery times may vary depending on available stock.

7 - IMZ-8.103-08016

8 - IMZ-8.103-08015

N°9 Screw M10x1.5x45 for the leading link fork (carburetor part) N°9 Screw M10x1.5x45 for the leading link fork (carburetor part)
N°9 Screw M10x1.5x45 for the leading link fork (carburetor part)
9,00 €

Part n°9 on the leading link fork diagram

Screw M10x1.5x45 for the leading link fork (carburetor part)

  • Part number : E01304

Please note that delivery times may vary depending on available stock.

9 - E01304

9, 13 & 16 - DIN 960 M10x1-6gx45

N°9/N°13/N°16 Screw M10x1x45 for the leading link fork (carburetor part) N°9/N°13/N°16 Screw M10x1x45 for the leading link fork (carburetor part)
N°9/N°13/N°16 Screw M10x1x45 for the leading link fork (carburetor part)
7,00 €

Part n°9/n°13/n°16 on the leading link fork diagram

Screw M10x1x45 for the leading link fork (carburetor part)

  • Part number : DIN 960 M10x1-6gx45

Please note that delivery times may vary depending on available stock.

N°14 Distance bushing for ZF Sachs shock absorber for the leading link fork (carburetor part) N°14 Distance bushing for ZF Sachs shock absorber for the leading link fork (carburetor part)
N°14 Distance bushing for ZF Sachs shock absorber for the leading link fork (carburetor part)
4,00 €

Part n°14 on the leading link fork diagram

Distance bushing for ZF Sachs shock absorber for the leading link fork (carburetor part)

  • Part number : 6309262-08

Please note that delivery times may vary depending on available stock.

N°14 Distance bushing (6309262) for the leading link fork (carburetor part) N°14 Distance bushing (6309262) for the leading link fork (carburetor part)
N°14 Distance bushing (6309262) for the leading link fork (carburetor part)
4,00 €

Part n°14 on the leading link fork diagram

Distance bushing (6309262) for the leading link fork (carburetor part)

  • Part number : 6309262

Please note that delivery times may vary depending on available stock.

N°17 Swing arm, front fork until 2007 for the leading link fork (carburetor part) N°17 Swing arm, front fork until 2007 for the leading link fork (carburetor part)
N°17 Swing arm, front fork until 2007 for the leading link fork (carburetor part)
240,00 €

Part n°17 on the leading link fork diagram

Swing arm, front fork until 2007 for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08061

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°17 Swing arm, front fork with silent blocks from 2007 until VIN 231958 for the leading link fork (carburetor part) N°17 Swing arm, front fork with silent blocks from 2007 until VIN 231958 for the leading link fork (carburetor part)
N°17 Swing arm, front fork with silent blocks from 2007 until VIN 231958 for the leading link fork (carburetor part)
255,00 €

Part n°17 on the leading link fork diagram

Swing arm, front fork with silent blocks from 2007 until VIN 231958 for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-08060

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°18/N°28 Spring washer 10L for the leading link fork (carburetor part) N°18/N°28 Spring washer 10L for the leading link fork (carburetor part)
N°18/N°28 Spring washer 10L for the leading link fork (carburetor part)
1,00 €

Part n°18 and part n°28 on the leading link fork diagram

Spring washer 10L for the leading link fork (carburetor part)

  • Part number : E03603

Please note that delivery times may vary depending on available stock.

N°19/N°29 Nut M10x1 for the leading link fork (carburetor part) N°19/N°29 Nut M10x1 for the leading link fork (carburetor part)
N°19/N°29 Nut M10x1 for the leading link fork (carburetor part)
4,00 €

Part n°19 and part n°29 on the leading link fork diagram

Nut M10x1 for the leading link fork (carburetor part)

  • Part number : E00862

Please note that delivery times may vary depending on available stock.

19 & 29 - E20293

20 - E03604

21 - E20295

21 - DIN 934 M12x1.25

22 - 2007106

22 - 32006X/Q

N°22 Tapered roller bearing for steering head since 2008 (Russian) per unit for the leading link fork (carburetor part) N°22 Tapered roller bearing for steering head since 2008 (Russian) per unit for the leading link fork (carburetor part)
N°22 Tapered roller bearing for steering head since 2008 (Russian) per unit for the leading link fork (carburetor part)
38,00 €

Part n°22 on the leading link fork diagram

Tapered roller bearing for steering head since 2008 (Russian) per unit for the leading link fork (carburetor part)

  • Part number : 2007106

Please note that delivery times may vary depending on available stock.

N°22 Tapered roller bearing for steering head since 2008 per unit for the leading link fork (carburetor part) N°22 Tapered roller bearing for steering head since 2008 per unit for the leading link fork (carburetor part)
N°22 Tapered roller bearing for steering head since 2008 per unit for the leading link fork (carburetor part)
56,00 €

Part n°22 on the leading link fork diagram

Tapered roller bearing for steering head since 2008 per unit for the leading link fork (carburetor part)

  • Part number : MIC32006X

Please note that delivery times may vary depending on available stock.

N°26 Yoke bolt (7208150) for the leading link fork (carburetor part) N°26 Yoke bolt (7208150) for the leading link fork (carburetor part)
N°26 Yoke bolt (7208150) for the leading link fork (carburetor part)
5,00 €

Part n°26 on the leading link fork diagram

Yoke bolt (7208150) for the leading link fork (carburetor part)

  • Part number : 7208150

Please note that delivery times may vary depending on available stock.

N°27 Screw M10x1x70 for the leading link fork (carburetor part) N°27 Screw M10x1x70 for the leading link fork (carburetor part)
N°27 Screw M10x1x70 for the leading link fork (carburetor part)
4,00 €

Part n°27 on the leading link fork diagram

Screw M10x1x70 for the leading link fork (carburetor part)

  • Part number : 201532-P29

Please note that delivery times may vary depending on available stock.

30 - IMZ-8.1037-08004-30

30 - IMZ-8.1037-08004-50

30 - IMZ-8.103-08004T

30 - IMZ-8.1037-08004-40

N°30 Right fork tube with rubber bushing (drum brake) for the leading link fork (carburetor part) N°30 Right fork tube with rubber bushing (drum brake) for the leading link fork (carburetor part)
N°30 Right fork tube with rubber bushing (drum brake) for the leading link fork (carburetor part)
180,00 €

Part n°30 on the leading link fork diagram

Right fork tube with rubber bushing (drum brake) for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08004T

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°30 Right fork tube without ball bearings from 2008 until 2011 for the leading link fork (carburetor part) N°30 Right fork tube without ball bearings from 2008 until 2011 for the leading link fork (carburetor part)
N°30 Right fork tube without ball bearings from 2008 until 2011 for the leading link fork (carburetor part)
180,00 €

Part n°30 on the leading link fork diagram

Right fork tube without ball bearings from 2008 until 2011 for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-08004-40

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

31 - IMZ-8.103-08005T

31 - IMZ-8.1037-08005-40

32 - 6309759-P

33 - 6309763

N°34 Rubber bushing (6309764) for the leading link fork (carburetor part) N°34 Rubber bushing (6309764) for the leading link fork (carburetor part)
N°34 Rubber bushing (6309764) for the leading link fork (carburetor part)
23,00 €

Part n°34 on the leading link fork diagram

Rubber bushing (6309764) for the leading link fork (carburetor part)

  • Part number : 6309764

Please note that delivery times may vary depending on available stock.

N°35 Reaction link for discbrake for the leading link fork (carburetor part) N°35 Reaction link for discbrake for the leading link fork (carburetor part) N°35 Reaction link for discbrake for the leading link fork (carburetor part)
N°35 Reaction link for discbrake for the leading link fork (carburetor part)
à partir de 72,00 €

Part n°35 on the leading link fork diagram

Reaction link for discbrake for the leading link fork (carburetor part)

  • Model year from 2007 to 2011 : Part number : IMZ-8.1037-08064-20

  • Model year since 2012 : Part number : IMZ-8.1037-08064-31

Please note that delivery times may vary depending on available stock.

36 - IMZ-8.1037-27137-10

37 - 365065-P25

N°36 Bushing since 2007 (IMZ-8.1037-27137-10) for the leading link fork (carburetor part) N°36 Bushing since 2007 (IMZ-8.1037-27137-10) for the leading link fork (carburetor part)
N°36 Bushing since 2007 (IMZ-8.1037-27137-10) for the leading link fork (carburetor part)
16,00 €

Part n°36 on the leading link fork diagram

Bushing since 2007 (IMZ-8.1037-27137-10) for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-27137-10

Please note that delivery times may vary depending on available stock.

N°37 Screw M12x1.25x65 for the leading link fork (carburetor part) N°37 Screw M12x1.25x65 for the leading link fork (carburetor part)
N°37 Screw M12x1.25x65 for the leading link fork (carburetor part)
20,00 €

Part n°37 on the leading link fork diagram

Screw M12x1.25x65 for the leading link fork (carburetor part)

  • Part number : 365065-P25

Please note that delivery times may vary depending on available stock.

N°47 Washer 10 for the leading link fork (carburetor part) N°47 Washer 10 for the leading link fork (carburetor part)
N°47 Washer 10 for the leading link fork (carburetor part)
1,00 €

Part n°47 on the leading link fork diagram

Washer 10 for the leading link fork (carburetor part)

  • Part number : E03504

Please note that delivery times may vary depending on available stock.

N°48 Nut M10x1.5 self locking for the leading link fork (carburetor part) N°48 Nut M10x1.5 self locking for the leading link fork (carburetor part)
N°48 Nut M10x1.5 self locking for the leading link fork (carburetor part)
4,00 €

Part n°48 on the leading link fork diagram

Nut M10x1.5 self locking for the leading link fork (carburetor part)

  • Part number : E00871

Please note that delivery times may vary depending on available stock.

55 - 6201-C-2HRS

N°55 Ball bearing 2008-09/2019 for the leading link fork (carburetor part) N°55 Ball bearing 2008-09/2019 for the leading link fork (carburetor part)
N°55 Ball bearing 2008-09/2019 for the leading link fork (carburetor part)
23,00 €

Part n°55 on the leading link fork diagram

Ball bearing 2008-09/2019 for the leading link fork (carburetor part)

  • Part number : 6201-C-2HRS

Please note that delivery times may vary depending on available stock.

2 - 2 Variants

1 - 2 Variants

N°2 Shock absorber for the leading link fork (carburetor part) N°2 Shock absorber for the leading link fork (carburetor part) N°2 Shock absorber for the leading link fork (carburetor part)
N°2 Shock absorber for the leading link fork (carburetor part)
à partir de 220,00 €

Part n°2 on the leading link fork diagram

Shock absorber for the leading link fork (carburetor part)

  • Black color : Part number : IMZ-8.1037-26001-17BL

  • Chrome color : Part number : IMZ-8.1037-26001-17CR

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°1 Lower fork yoke with steering column for the leading link fork (carburetor part) N°1 Lower fork yoke with steering column for the leading link fork (carburetor part) N°1 Lower fork yoke with steering column for the leading link fork (carburetor part)
N°1 Lower fork yoke with steering column for the leading link fork (carburetor part)
180,00 €

Part n°1 on the leading link fork diagram

Lower fork yoke with steering column for the leading link fork (carburetor part)

  • Model year until 2007 : Part number : IMZ-8.103-08011

  • Model year since 2008 : Part number : IMZ-8.1037-08011

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

4 - 7208156

3 - 2 Variants

N°4 Washer (7208156) for the leading link fork (carburetor part) N°4 Washer (7208156) for the leading link fork (carburetor part)
N°4 Washer (7208156) for the leading link fork (carburetor part)
5,00 €

Part n°4 on the leading link fork diagram

Washer (7208156) for the leading link fork (carburetor part)

  • Part number : 7208156

Please note that delivery times may vary depending on available stock.

N°3 Tightening nut for the leading link fork (carburetor part) N°3 Tightening nut for the leading link fork (carburetor part) N°3 Tightening nut for the leading link fork (carburetor part)
N°3 Tightening nut for the leading link fork (carburetor part)
29,00 €

Part n°3 on the leading link fork diagram

Tightening nut for the leading link fork (carburetor part)

  • Model year until 2010 : Part number : IMZ-8.103-08154

  • Model year since 2011 : Part number : IMZ-8.103-08154-01

Please note that delivery times may vary depending on available stock.

6 - 7208157

5 - IMZ-8.103-08153-01

N°8 Headlight support, rightside for the leading link fork (carburetor part) N°8 Headlight support, rightside for the leading link fork (carburetor part)
N°8 Headlight support, rightside for the leading link fork (carburetor part)
88,00 €

Part n°8 on the leading link fork diagram

Headlight support, rightside for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08015

Please note that delivery times may vary depending on available stock.

N°7 Headlight support, leftside for the leading link fork (carburetor part) N°7 Headlight support, leftside for the leading link fork (carburetor part)
N°7 Headlight support, leftside for the leading link fork (carburetor part)
106,00 €

Part n°7 on the leading link fork diagram

Headlight support, leftside for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08016

Please note that delivery times may vary depending on available stock.

12 - IMZ-8.103-08064

10, 11 & 15 - 6309762

N°12 Reaction link drum brake for the leading link fork (carburetor part) N°12 Reaction link drum brake for the leading link fork (carburetor part)
Sur commande
N°12 Reaction link drum brake for the leading link fork (carburetor part)
37,00 €

Part n°12 on the leading link fork diagram

Reaction link drum brake for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08064

Please note that delivery times may vary depending on available stock.

N°10/N°11/N°15 Rubber bushing (6309762) for the leading link fork (carburetor part) N°10/N°11/N°15 Rubber bushing (6309762) for the leading link fork (carburetor part)
N°10/N°11/N°15 Rubber bushing (6309762) for the leading link fork (carburetor part)
13,00 €

Part n°10/n°11/n°15 on the leading link fork diagram

Rubber bushing (6309762) for the leading link fork (carburetor part)

  • Part number : 6309762

Please note that delivery times may vary depending on available stock.

14 - 6309262

14 - 6309262-08

17 - IMZ-8.1037-08060

17 - IMZ-8.103-08061

19 & 29 - E00862

18 & 28 - E03603

N°20 Spring washer 12L for the leading link fork (carburetor part) N°20 Spring washer 12L for the leading link fork (carburetor part)
N°20 Spring washer 12L for the leading link fork (carburetor part)
2,00 €

Part n°20 on the leading link fork diagram

Spring washer 12L for the leading link fork (carburetor part)

  • Part number : E03604

Please note that delivery times may vary depending on available stock.

N°19/N°29 Nut M10x1 self locking for the leading link fork (carburetor part) N°19/N°29 Nut M10x1 self locking for the leading link fork (carburetor part)
N°19/N°29 Nut M10x1 self locking for the leading link fork (carburetor part)
4,00 €

Part n°19 and part n°29 on the leading link fork diagram

Nut M10x1 self locking for the leading link fork (carburetor part)

  • Part number : E20293

Please note that delivery times may vary depending on available stock.

N°21 Nut M12x1.25 for the leading link fork (carburetor part) N°21 Nut M12x1.25 for the leading link fork (carburetor part)
N°21 Nut M12x1.25 for the leading link fork (carburetor part)
5,00 €

Part n°21 on the leading link fork diagram

Nut M12x1.25 for the leading link fork (carburetor part)

  • Part number : DIN 934 M12x1.25

Please note that delivery times may vary depending on available stock.

N°21 Nut M12x1.25 self locking for the leading link fork (carburetor part) N°21 Nut M12x1.25 self locking for the leading link fork (carburetor part)
N°21 Nut M12x1.25 self locking for the leading link fork (carburetor part)
4,00 €

Part n°21 on the leading link fork diagram

Nut M12x1.25 self locking for the leading link fork (carburetor part)

  • Part number : E20295

Please note that delivery times may vary depending on available stock.

23 - 6608151

22 - Sch775-01

N°23 Steering column until 2007 for the leading link fork (carburetor part) N°23 Steering column until 2007 for the leading link fork (carburetor part)
N°23 Steering column until 2007 for the leading link fork (carburetor part)
48,00 €

Part n°23 on the leading link fork diagram

Steering column until 2007 for the leading link fork (carburetor part)

  • Part number : 6608151

Please note that delivery times may vary depending on available stock.

N°22 Tapered roller bearing set for steering head until 2007 for the leading link fork (carburetor part) N°22 Tapered roller bearing set for steering head until 2007 for the leading link fork (carburetor part)
N°22 Tapered roller bearing set for steering head until 2007 for the leading link fork (carburetor part)
91,00 €

Part n°22 on the leading link fork diagram

Tapered roller bearing set for steering head until 2007 for the leading link fork (carburetor part)

  • Part number : Sch775-01

Please note that delivery times may vary depending on available stock.

25 - IMZ-8.103-08155

24 - E42719

N°25 Lower fork yoke with steering column until 2007 for the leading link fork (carburetor part) N°25 Lower fork yoke with steering column until 2007 for the leading link fork (carburetor part)
N°25 Lower fork yoke with steering column until 2007 for the leading link fork (carburetor part)
130,00 €

Part n°25 on the leading link fork diagram

Lower fork yoke with steering column until 2007 for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08155

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°24 Stud M8x16 for the leading link fork (carburetor part) N°24 Stud M8x16 for the leading link fork (carburetor part)
N°24 Stud M8x16 for the leading link fork (carburetor part)
11,00 €

Part n°24 on the leading link fork diagram

Stud M8x16 for the leading link fork (carburetor part)

  • Part number : E42719

Please note that delivery times may vary depending on available stock.

27 - 201532-P29

26 - 7208150

N°30 Right fork tube without ball bearings (discbrake) since 2012 for the leading link fork (carburetor part) N°30 Right fork tube without ball bearings (discbrake) since 2012 for the leading link fork (carburetor part)
N°30 Right fork tube without ball bearings (discbrake) since 2012 for the leading link fork (carburetor part)
180,00 €

Part n°30 on the leading link fork diagram

Right fork tube without ball bearings (discbrake) since 2012 for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-08004-50

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°30 Right fork tube with rubber bushing until 2007 (discbrake) for the leading link fork (carburetor part) N°30 Right fork tube with rubber bushing until 2007 (discbrake) for the leading link fork (carburetor part)
N°30 Right fork tube with rubber bushing until 2007 (discbrake) for the leading link fork (carburetor part)
180,00 €

Part n°30 on the leading link fork diagram

Right fork tube with rubber bushing until 2007 (discbrake) for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-08004-30

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°31 Left fork tube without ball bearings since 2008 for the leading link fork (carburetor part) N°31 Left fork tube without ball bearings since 2008 for the leading link fork (carburetor part)
N°31 Left fork tube without ball bearings since 2008 for the leading link fork (carburetor part)
180,00 €

Part n°31 on the leading link fork diagram

Left fork tube without ball bearings since 2008 for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-08005-40

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°31 Left fork tube with rubber bushing until 2007 for the leading link fork (carburetor part) N°31 Left fork tube with rubber bushing until 2007 for the leading link fork (carburetor part)
N°31 Left fork tube with rubber bushing until 2007 for the leading link fork (carburetor part)
180,00 €

Part n°31 on the leading link fork diagram

Left fork tube with rubber bushing until 2007 for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08005T

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°33 Sleeve for rubber bushing for the leading link fork (carburetor part) N°33 Sleeve for rubber bushing for the leading link fork (carburetor part)
N°33 Sleeve for rubber bushing for the leading link fork (carburetor part)
6,00 €

Part n°33 on the leading link fork diagram

Sleeve for rubber bushing for the leading link fork (carburetor part)

  • Part number : 6309763

Please note that delivery times may vary depending on available stock.

N°32 Screw M12x1.25x70 for the leading link fork (carburetor part) N°32 Screw M12x1.25x70 for the leading link fork (carburetor part)
N°32 Screw M12x1.25x70 for the leading link fork (carburetor part)
18,00 €

Part n°32 on the leading link fork diagram

Screw M12x1.25x70 for the leading link fork (carburetor part)

  • Part number : 6309759-P

Please note that delivery times may vary depending on available stock.

35 - 2 Variants

34 - 6309764

N°40 Bushing (IMZ-8.103-06206) for the leading link fork (carburetor part) N°40 Bushing (IMZ-8.103-06206) for the leading link fork (carburetor part)
N°40 Bushing (IMZ-8.103-06206) for the leading link fork (carburetor part)
8,00 €

Part n°40 on the leading link fork diagram

Bushing (IMZ-8.103-06206) for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-06206

Please note that delivery times may vary depending on available stock.

38 & 43 - IMZ-8.103-08633

N°38/N°43 Washer (IMZ-8.103-08633) for the leading link fork (carburetor part) N°38/N°43 Washer (IMZ-8.103-08633) for the leading link fork (carburetor part)
N°38/N°43 Washer (IMZ-8.103-08633) for the leading link fork (carburetor part)
3,00 €

Part n°38 and part n°43 on the leading link fork diagram

Washer (IMZ-8.103-08633) for the leading link fork (carburetor part)

  • Part number : IMZ-8.103-08633

Please note that delivery times may vary depending on available stock.

40 - IMZ-8.103-06206

44 - 2 Variants

42 - 7203207-А

N°44 Upper adapter for caliper for the leading link fork (carburetor part) N°44 Upper adapter for caliper for the leading link fork (carburetor part) N°44 Upper adapter for caliper for the leading link fork (carburetor part)
N°44 Upper adapter for caliper for the leading link fork (carburetor part)
74,00 €

Part n°44 on the leading link fork diagram

Upper adapter for caliper for the leading link fork (carburetor part)

  • Model year 2007 to 2011 : Part number : IMZ-8.1037-27055-10

  • Model year since 2012 : Part number : IMZ-8.1037-27055-20

Please note that delivery times may vary depending on available stock.

N°42 O-ring (7203207-А) for the leading link fork (carburetor part) N°42 O-ring (7203207-А) for the leading link fork (carburetor part)
N°42 O-ring (7203207-А) for the leading link fork (carburetor part)
6,00 €

Part n°42 on the leading link fork diagram

O-ring (7203207-А) for the leading link fork (carburetor part)

  • Part number : 7203207-A

Please note that delivery times may vary depending on available stock.

N°46 Lower adapter for caliper since 2007 for the leading link fork (carburetor part) N°46 Lower adapter for caliper since 2007 for the leading link fork (carburetor part)
N°46 Lower adapter for caliper since 2007 for the leading link fork (carburetor part)
63,00 €

Part n°46 on the leading link fork diagram

Lower adapter for caliper since 2007 for the leading link fork (carburetor part)

  • Part number : IMZ-8.1037-27052-10

Please note that delivery times may vary depending on available stock.

45 - 334883

N°45 Screw M10x1.25x30 for the leading link fork (carburetor part) N°45 Screw M10x1.25x30 for the leading link fork (carburetor part)
N°45 Screw M10x1.25x30 for the leading link fork (carburetor part)
5,00 €

Part n°45 on the leading link fork diagram

Screw M10x1.25x30 for the leading link fork (carburetor part)

  • Part number : 334883

Please note that delivery times may vary depending on available stock.

46 - IMZ-8.1037-27052-10

48 - E00871

47 - E03504

50 - E03502

49 - E00872

N°50 Washer 8 for the leading link fork (carburetor part) N°50 Washer 8 for the leading link fork (carburetor part)
N°50 Washer 8 for the leading link fork (carburetor part)
1,00 €

Part n°50 on the leading link fork diagram

Washer 8 for the leading link fork (carburetor part)

  • Part number : E03502

Please note that delivery times may vary depending on available stock.

N°49 Nut M12x1.75 for the leading link fork (carburetor part) N°49 Nut M12x1.75 for the leading link fork (carburetor part)
N°49 Nut M12x1.75 for the leading link fork (carburetor part)
4,00 €

Part n°49 on the leading link fork diagram

Nut M12x1.75 for the leading link fork (carburetor part)

  • Part number : E00872

Please note that delivery times may vary depending on available stock.

52 - E36396

51 - E36372

N°52 Socket head cap screw M10x80 for the leading link fork (carburetor part) N°52 Socket head cap screw M10x80 for the leading link fork (carburetor part)
N°52 Socket head cap screw M10x80 for the leading link fork (carburetor part)
4,00 €

Part n°52 on the leading link fork diagram

Socket head cap screw M10x80 for the leading link fork (carburetor part)

  • Part number : E36396

Please note that delivery times may vary depending on available stock.

N°51 Socket head cap screw M8x16 for the leading link fork (carburetor part) N°51 Socket head cap screw M8x16 for the leading link fork (carburetor part)
N°51 Socket head cap screw M8x16 for the leading link fork (carburetor part)
8,00 €

Part n°51 on the leading link fork diagram

Socket head cap screw M8x16 for the leading link fork (carburetor part)

  • Part number : E36372

Please note that delivery times may vary depending on available stock.

54 - IMZ-8.124-09760

53 - E03506

N°54 Distance bushing for ball bearings in swing arm until 09/2019 for the leading link fork (carburetor part) N°54 Distance bushing for ball bearings in swing arm until 09/2019 for the leading link fork (carburetor part)
N°54 Distance bushing for ball bearings in swing arm until 09/2019 for the leading link fork (carburetor part)
7,00 €

Part n°54 on the leading link fork diagram

Distance bushing for ball bearings in swing arm until 09/2019 for the leading link fork (carburetor part)

  • Part number : IMZ-8.124-09760

Please note that delivery times may vary depending on available stock.

N°53 Washer M12 for the leading link fork (carburetor part) N°53 Washer M12 for the leading link fork (carburetor part)
N°53 Washer M12 for the leading link fork (carburetor part)
2,00 €

Part n°53 on the leading link fork diagram

Washer M12 for the leading link fork (carburetor part)

  • Part number : E03506

Please note that delivery times may vary depending on available stock.
