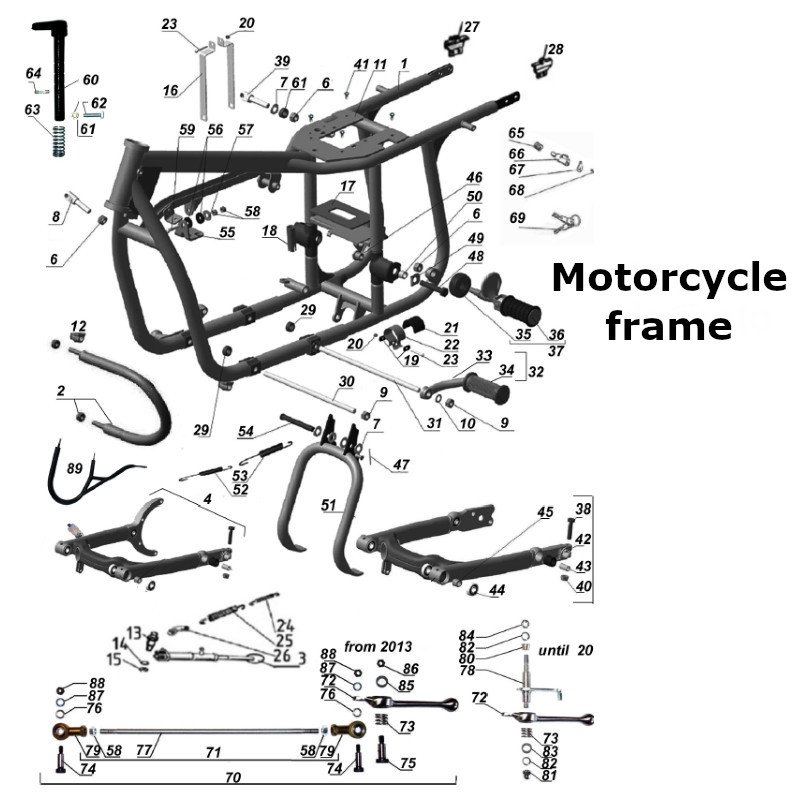

Part n°1 on the motorcycle frame diagram
Motorcycle frame (for sidecar use), black LH (carburetor part)
Model year until 2007 : Part number : IMZ-8.103L-09007-10
Model year since 2008 : Part number : IMZ-8.103L-09007-08
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Part n°1 on the motorcycle frame diagram
Motorcycle frame (for sidecar use), black (carburetor part)
Model year until 2007 : Part number : IMZ-8.1037-09007
Model year since 2008 : Part number : IMZ-8.1037-09007-30
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Part n°1 on the motorcycle frame diagram
Motorcycle frame Solo (carburetor part)
Part number : IMZ-8.123-09007-10
Please note that delivery times may vary depending on available stock.
Part n°2 on the motorcycle frame diagram
Cylinder crash bar leftside, black for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16074
Please note that delivery times may vary depending on available stock.
2 - IMZ-8.103-16074-01
2 - IMZ-8.103-16305
Part n°2 on the motorcycle frame diagram
Cylinder crash bar (IMZ-8.103-16074-01) leftside for the motorcycle frame (carburetor part)
Part number : IMZ-8.103-16074-01
Please note that delivery times may vary depending on available stock.
Part n°2 on the motorcycle frame diagram
Cylinder crash bar leftside (IMZ-8.103-16305) chrome for the motorcycle frame (carburetor part)
Part number : IMZ-8.103-16305
Please note that delivery times may vary depending on available stock.
2 - IMZ-8.1037-16074-CR
2 - IMZ-8.1037-16074-01
4 - 2 Variants
4 - IMZ-8.107-09080
Part n°5 on the motorcycle frame diagram
Rear swing arm with ball bearings since 2008 for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09080
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Part n°5 on the motorcycle frame diagram
Rear swing arm with rubber bushings until 2007 for the motorcycle frame (carburetor part)
Part number : IMZ-8.103-09080
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Part n°6 on the motorcycle frame diagram
Nut M12x1.25 self locking for the motorcycle frame (carburetor part)
Part number : E20295
Please note that delivery times may vary depending on available stock.
Part n°7 on the motorcycle frame diagram

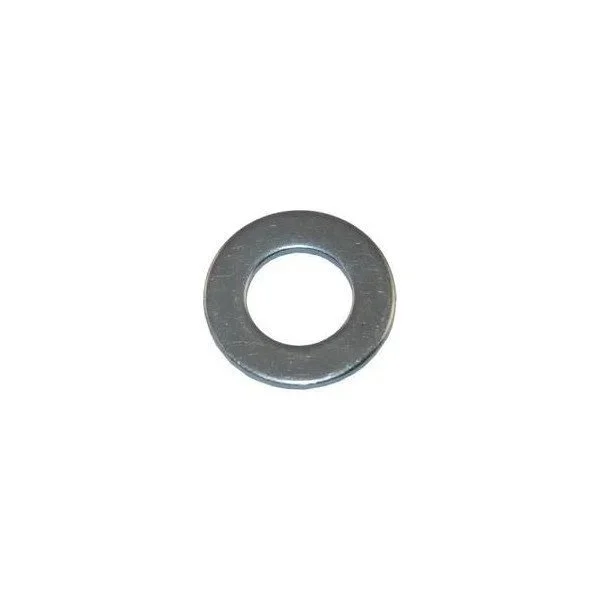

Washer M12 for the motorcycle frame (carburetor part)
Part number : E03506
Please note that delivery times may vary depending on available stock.
7 - 6309035
8 - 6309158
9 - DIN 934 M12x1.25
10 - E03604
Part n°9 on the motorcycle frame diagram

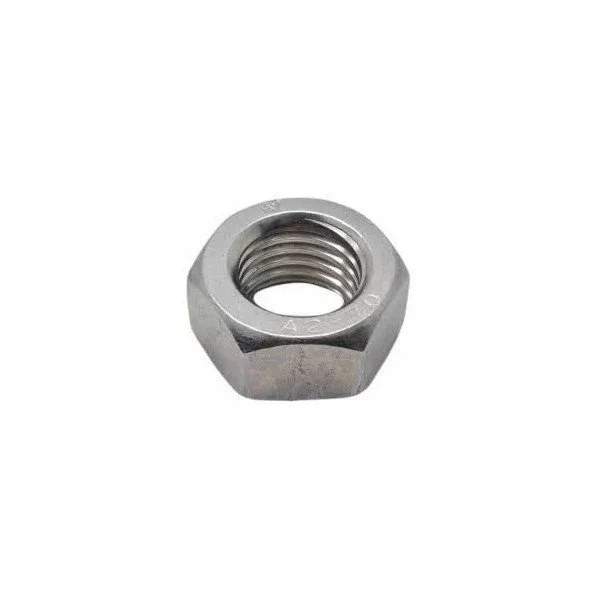

Nut M12x1.25 for the motorcycle frame (carburetor part)
Part number : DIN 934 M12x1.25
Please note that delivery times may vary depending on available stock.
Part n°10 on the motorcycle frame diagram
Spring washer 12L for the motorcycle frame (carburetor part)
Part number : E03604
Please note that delivery times may vary depending on available stock.
11 - IMZ-8.1037-09200-01
12 - 6309146
16 - IMZ-8.1037-09169-10
17 - IMZ-8.101-09168
Part n°16 on the motorcycle frame diagram
Battery band (2 parts) for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09169-10
Please note that delivery times may vary depending on available stock.
Part n°17 on the motorcycle frame diagram
Battery lining for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-09168
Please note that delivery times may vary depending on available stock.
18 - IMZ-8.101-09346
19 - 7209163-А
Part n°20 on the motorcycle frame diagram
Nut M5 self locking for the motorcycle frame (carburetor part)
Part number : E00868
Please note that delivery times may vary depending on available stock.
Part n°21 on the motorcycle frame diagram
Kick stop lining until 2014 for the motorcycle frame (carburetor part)
Part number : 6209186-01
Please note that delivery times may vary depending on available stock.
Part n°22 on the motorcycle frame diagram
Kick stop clip until 2014 for the motorcycle frame (carburetor part)
Part number : 7209188
Please note that delivery times may vary depending on available stock.
Part n°23 on the motorcycle frame diagram
Screw M5x40 for the motorcycle frame (carburetor part)
Part number : E37100
Please note that delivery times may vary depending on available stock.
Part n°24 on the motorcycle frame diagram
Inner return spring for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16266
Please note that delivery times may vary depending on available stock.
Part n°25 on the motorcycle frame diagram
Outer return spring for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16265
Please note that delivery times may vary depending on available stock.
26 - IMZ-8.1037-16268
27 - 2 Variants
Part n°28 on the motorcycle frame diagram
Bracket seat bench leftside until 2010 for the motorcycle frame (carburetor part)
Black color : Part number : IMZ-8.101-09057-01
Chrome color : Part number : IMZ-8.101-09057
Please note that delivery times may vary depending on available stock.
Part n°29 on the motorcycle frame diagram
Distance bushing (6309156) for the motorcycle frame (carburetor part)
Part number : 6309156
Please note that delivery times may vary depending on available stock.
30 - 7209195-01
31 - 7209157
Part n°32 on the motorcycle frame diagram
Folding footrest front for the motorcycle frame (carburetor part)
Leftside : Part number : IMZ-8.123-09030
Rightside : Part number : IMZ-8.123-09034
Please note that delivery times may vary depending on available stock.
Part n°32 on the motorcycle frame diagram
Front footrest assembly for the motorcycle frame (carburetor part)
Part number : 6309031
Please note that delivery times may vary depending on available stock.
33 - 6309302
34 - 6309301
Part n°33 on the motorcycle frame diagram
Front footrest for the motorcycle frame (carburetor part)
Part number : 6309302
Please note that delivery times may vary depending on available stock.
Part n°34 on the motorcycle frame diagram
Footrest rubber for the motorcycle frame (carburetor part)
Part number : 6309301
Please note that delivery times may vary depending on available stock.
39 - IMZ-8.1037-09158
40 - E20293
Part n°39 on the motorcycle frame diagram
Sidecar tie rod bracket rear for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09158
Please note that delivery times may vary depending on available stock.
Part n°40 on the motorcycle frame diagram
Nut M10x1 self locking for the motorcycle frame (carburetor part)
Part number : E20293
Please note that delivery times may vary depending on available stock.
41 - ISO 7380 M8x16
42 - 6309762
Part n°41 on the motorcycle frame diagram
Screw M8x16 ISO 7380 for the motorcycle frame (carburetor part)
Part number : ISO 7380 M8x16
Please note that delivery times may vary depending on available stock.
Part n°42 on the motorcycle frame diagram
Rubber bushing (6309762) for the motorcycle frame (carburetor part)
Part number : 6309762
Please note that delivery times may vary depending on available stock.
45 - 6309763
45 - IMZ-8.124-09760
Part n°46 on the motorcycle frame diagram
Special nut for rear swing arm for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09257
Please note that delivery times may vary depending on available stock.
Part n°47 on the motorcycle frame diagram
Cotter pin 3.2x32 for the motorcycle frame (carburetor part)
Part number : E03748
Please note that delivery times may vary depending on available stock.
48 - 6309759-P
48 - IMZ-8.1037-09759-10
52 - IMZ-8.103-09319
53 - IMZ-8.103-09318
54 - 6209315-01
55 - IMZ-8.101-09167
Part n°54 on the motorcycle frame diagram
Stand pin for the motorcycle frame (carburetor part)
Part number : 6209315-01
Please note that delivery times may vary depending on available stock.
Part n°55 on the motorcycle frame diagram
Engine mounting plate upper for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-09167
Please note that delivery times may vary depending on available stock.
56 - 7210146
57 - E03530
Part n°58 on the motorcycle frame diagram
Nut M8 for the motorcycle frame (carburetor part)
Part number : E42424
Please note that delivery times may vary depending on available stock.
Part n°59 on the motorcycle frame diagram
Screw M8x32 for engine upper fastening for the motorcycle frame (carburetor part)
Part number : 201461-P29
Please note that delivery times may vary depending on available stock.
64 - IMZ-8.101-11183
65 - 6616260
Part n°64 on the motorcycle frame diagram
Pin (IMZ-8.101-11183) for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-11183
Please note that delivery times may vary depending on available stock.
Part n°65 on the motorcycle frame diagram
Return spring (6616260) for the motorcycle frame (carburetor part)
Part number : 6616260
Please note that delivery times may vary depending on available stock.
71 - 2 Variants
72 - 2 Variants
73 - 7204312-01
74 - 2 Variants
77 - IMZ-8.1037-05237-10
78 - 2 Variants
81 - E00911
82 - E03602
Part n°83 on the motorcycle frame diagram
Washer 8 for the motorcycle frame (carburetor part)
Part number : E03502
Please note that delivery times may vary depending on available stock.
Part n°84 on the motorcycle frame diagram
Nut M8 self locking for the motorcycle frame (carburetor part)
Part number : E00870
Please note that delivery times may vary depending on available stock.
85 - E03504
86 - E00871
Part n°85 on the motorcycle frame diagram
Washer 10 for the motorcycle frame (carburetor part)
Part number : E03504
Please note that delivery times may vary depending on available stock.
Part n°86 on the motorcycle frame diagram
Nut M10x1.5 self locking for the motorcycle frame (carburetor part)
Part number : E00871
Please note that delivery times may vary depending on available stock.
87 - E03500
88 - E00869
89 - FE8213CR
Part n°89 on the motorcycle frame diagram
Protective bar chrome for motorcycle frame leftside (carburetor part)
Part number : FE8213CR
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
1 - 2 Variants
1 - 2 Variants
2 - IMZ-8.1037-16074
1 - IMZ-8.123-09007-10
Part n°2 on the motorcycle frame diagram
Cylinder crash bar leftside (IMZ-8.1037-16074-01) stainless for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16074-01
Please note that delivery times may vary depending on available stock.
Part n°2 on the motorcycle frame diagram
Cylinder crash bar leftside (IMZ-8.1037-16074-CR) chrome for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16074-CR
Please note that delivery times may vary depending on available stock.
Part n°4 on the motorcycle frame diagram
Rear swing arm with rubber bushings for TWD until 2007 for the motorcycle frame (carburetor part)
Part number : IMZ-8.107-09080
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Part n°4 on the motorcycle frame diagram
Rear swing arm with ball bearings for TWD for the motorcycle frame (carburetor part)
Model year from 2008 to 2012 : Part number : IMZ-8.107-09080-10
Model year since 2013 : Part number : IMZ-8.107-09080-20
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
5 - IMZ-8.103-09080
5 - IMZ-8.1037-09080
7 - E03506
6 - E20295
Part n°8 on the motorcycle frame diagram
Sidecar tie rod bracket front for the motorcycle frame (carburetor part)
Part number : 6309158
Please note that delivery times may vary depending on available stock.
Part n°7 on the motorcycle frame diagram
Co-pilot footrest fixed for the motorcycle frame (carburetor part)
Part number : 6309035
Please note that delivery times may vary depending on available stock.

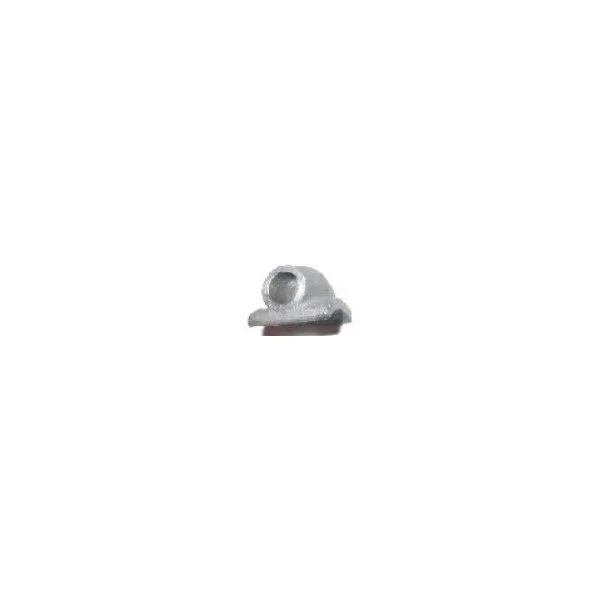

Part n°12 on the motorcycle frame diagram
Bracket (to weld on-eye) for the motorcycle frame (carburetor part)
Part number : 6309146
Please note that delivery times may vary depending on available stock.
Part n°11 on the motorcycle frame diagram
Baseplate from 2009 until 2016 for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09200-01
Please note that delivery times may vary depending on available stock.
14 - E03603
13 - IMZ-8.1037-16269
Part n°14 on the motorcycle frame diagram
Spring washer 10L for the motorcycle frame (carburetor part)
Part number : E03603
Please note that delivery times may vary depending on available stock.
Part n°13 on the motorcycle frame diagram
Side stand bolt for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16269
Please note that delivery times may vary depending on available stock.
16 - IMZ-8.101-09169
15 - E00862
Part n°16 on the motorcycle frame diagram
Battery band (2 parts) without electrical starter for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-09169
Please note that delivery times may vary depending on available stock.

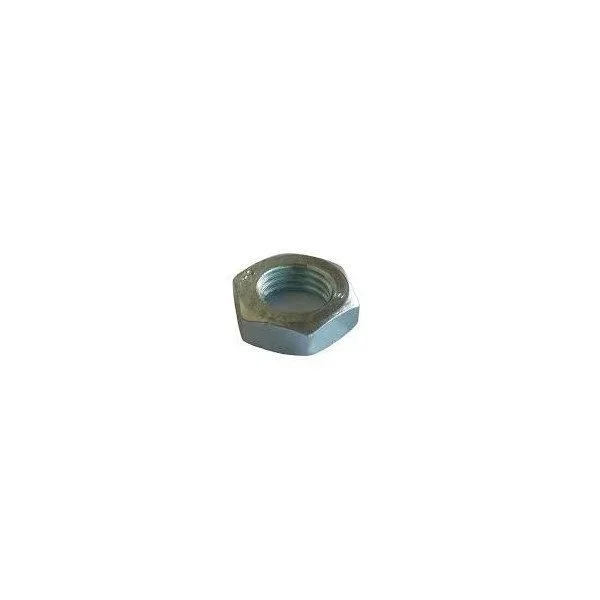

Part n°15 on the motorcycle frame diagram
Nut M10x1 for the motorcycle frame (carburetor part)
Part number : E00862
Please note that delivery times may vary depending on available stock.
Part n°19 on the motorcycle frame diagram
Brace until 2014 for the motorcycle frame (carburetor part)
Part number : 7209163-A
Please note that delivery times may vary depending on available stock.
Part n°18 on the motorcycle frame diagram
Console for parking brake lever (to weld on) for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-09346
Please note that delivery times may vary depending on available stock.
21 - 6209186-01
20 - E00868
23 - E37100
22 - 7209188
25 - IMZ-8.1037-16265
24 - IMZ-8.1037-16266
Part n°27 on the motorcycle frame diagram
Bracket seat bench rightside until 2010 for the motorcycle frame (carburetor part)
Color black : Part number : IMZ-8.101-09056-01
Color chrome : Part number : IMZ-8.101-09056
Please note that delivery times may vary depending on available stock.
Part n°26 on the motorcycle frame diagram
Plate (IMZ-8.1037-16268) for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-16268
Please note that delivery times may vary depending on available stock.
29 - 6309156
28 - 2 Variants
Part n°31 on the motorcycle frame diagram
Stud rear engine mounting for the motorcycle frame (carburetor part)
Part number : 7209157
Please note that delivery times may vary depending on available stock.
Part n°30 on the motorcycle frame diagram
Stud front engine mounting for the motorcycle frame (carburetor part)
Part number : 7209195-01
Please note that delivery times may vary depending on available stock.
32 - 6309031
32 - 2 Variants
36 - IMZ-8.121-09034-10
35 - IMZ-8.121-09051
Part n°36 on the motorcycle frame diagram
Footrest rear, fold away, assembly without stopper for the motorcycle frame (carburetor part)
Part number : IMZ-8.121-09034-10
Please note that delivery times may vary depending on available stock.
Part n°35 on the motorcycle frame diagram
Swing arm pad for the motorcycle frame (carburetor part)
Part number : IMZ-8.121-09051
Please note that delivery times may vary depending on available stock.
Part n°38 on the motorcycle frame diagram
Screw M10x1x45 for the motorcycle frame (carburetor part)
Part number : DIN 960 M10x1-6gx45
Please note that delivery times may vary depending on available stock.
37 - IMZ-8.121-09032-01
Part n°37 on the motorcycle frame diagram
Footrest rear fold away assembly black for the motorcycle frame (carburetor part)
Part number : IMZ-8.121-09032-01
Please note that delivery times may vary depending on available stock.
38 - DIN 960 M10x1-6gx45
43 - 6309262
43 - 6309262-08
Part n°43 on the motorcycle frame diagram
Distance bushing (6309262) for the motorcycle frame (carburetor part)
Part number : 6309262
Please note that delivery times may vary depending on available stock.
Part n°43 on the motorcycle frame diagram
Distance bushing for ZF Sachs shock absorber for the motorcycle frame (carburetor part)
Part number : 6309262-08
Please note that delivery times may vary depending on available stock.
44 - 6309764
44 - 6201-C-2HRS
Part n°44 on the motorcycle frame diagram
Rubber bushing (6309764) for the motorcycle frame (carburetor part)
Part number : 6309764
Please note that delivery times may vary depending on available stock.
Part n°44 on the motorcycle frame diagram
Ball bearing 2008-09/2019 for the motorcycle frame (carburetor part)
Part number : 6201-C-2HRS
Please note that delivery times may vary depending on available stock.
Part n°45 on the motorcycle frame diagram
Distance bushing for ball bearings in swing arm until 09/2019 for the motorcycle frame (carburetor part)
Part number : IMZ-8.124-09760
Please note that delivery times may vary depending on available stock.
Part n°45 on the motorcycle frame diagram
Sleeve for rubber bushing for the motorcycle frame (carburetor part)
Part number : 6309763
Please note that delivery times may vary depending on available stock.
47 - E03748
46 - IMZ-8.1037-09257
Part n°48 on the motorcycle frame diagram
Special screw 2008-2016 for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09759-10
Please note that delivery times may vary depending on available stock.
Part n°48 on the motorcycle frame diagram
Screw M12x1.25x70 for the motorcycle frame (carburetor part)
Part number : 6309759-P
Please note that delivery times may vary depending on available stock.
50 - IMZ-8.1037-09760
49 - 367957-Р27
Part n°50 on the motorcycle frame diagram
Bushing (IMZ-8.1037-09760) since 2008 for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-09760
Please note that delivery times may vary depending on available stock.
Part n°49 on the motorcycle frame diagram
Lock washer until 2014 for the motorcycle frame (carburetor part)
Part number : 367957-Р27
Please note that delivery times may vary depending on available stock.
51 - IMZ-8.103-09060
50 - IMZ-8.101-09760
Part n°51 on the motorcycle frame diagram
Central stand black until VIN 231446 for the motorcycle frame (carburetor part)
Part number : IMZ-8.103-09060
Please note that delivery times may vary depending on available stock.
Part n°50 on the motorcycle frame diagram
Bushing (IMZ-8.101-09760) for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-09760
Please note that delivery times may vary depending on available stock.
Part n°53 on the motorcycle frame diagram
Return spring main stand outer for the motorcycle frame (carburetor part)
Part number : IMZ-8.103-09318
Please note that delivery times may vary depending on available stock.
Part n°52 on the motorcycle frame diagram
Return spring main stand inner for the motorcycle frame (carburetor part)
Part number : IMZ-8.103-09319
Please note that delivery times may vary depending on available stock.
Part n°57 on the motorcycle frame diagram
Washer M8 big for the motorcycle frame (carburetor part)
Part number : E03530
Please note that delivery times may vary depending on available stock.
Part n°56 on the motorcycle frame diagram
Rubber spacer (7210146) for the motorcycle frame (carburetor part)
Part number : 7210146
Please note that delivery times may vary depending on available stock.
59 - 201461-P29
58 - E42424
61 - E42423
60 - IMZ-8.1037-11047
Part n°61 on the motorcycle frame diagram
Nut M6 for the motorcycle frame (carburetor part)
Part number : E42423
Please note that delivery times may vary depending on available stock.
Part n°60 on the motorcycle frame diagram
Parking brake lever for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-11047
Please note that delivery times may vary depending on available stock.
63 - IMZ-8.101-11181
62 - E01369
Part n°63 on the motorcycle frame diagram
Spring for parking brake lever for the motorcycle frame (carburetor part)
Part number : IMZ-8.101-11181
Please note that delivery times may vary depending on available stock.
Part n°62 on the motorcycle frame diagram
Screw M6x25 for the motorcycle frame (carburetor part)
Part number : E01369
Please note that delivery times may vary depending on available stock.
68 - 252573-P29
67 - 6616263
Part n°68 on the motorcycle frame diagram
Rivet (252573-P29) for the motorcycle frame (carburetor part)
Part number : 252573-P29
Please note that delivery times may vary depending on available stock.
Part n°67 on the motorcycle frame diagram
Steering lock cover for the motorcycle frame (carburetor part)
Part number : 6616263
Please note that delivery times may vary depending on available stock.
70 - 4 Variants
69 - 6616254
Part n°70 on the motorcycle frame diagram
Security shift system complete for the motorcycle frame (carburetor part)
Model year until 2012 and color black : Part number : IMZ-8.107-05084
Model year until 2012 and chrome color : Part number : IMZ-8.107-05084-2007
Model year since 2013 and color black : Part number : IMZ-8.1037-05084-20-BL
Model year since 2013 and chrome color : Part number : IMZ-8.1037-05084-20-CR
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Part n°69 on the motorcycle frame diagram
Key (6616254) for the motorcycle frame (carburetor part)
Part number : 6616254
Please note that delivery times may vary depending on available stock.
Part n°72 on the motorcycle frame diagram
Shift lever for TWD for the motorcycle frame (carburetor part)
Black color : Part number : IMZ-8.107-05068-20-BL
Chrome color : Part number : IMZ-8.107-05068-20
Please note that delivery times may vary depending on available stock.
Part n°71 on the motorcycle frame diagram
Gear shift lever for sidecar drive for the motorcycle frame (carburetor part)
Model year until 2005 : Part number : IMZ-8.107-05237
Model year since 2006 : Part number : IMZ-8.1037-05081-10
Please note that delivery times may vary depending on available stock.
Part n°74 on the motorcycle frame diagram
Axle for shifting rod for the motorcycle frame (carburetor part)
Model year until 2010 : Part number : IMZ-8.1037-05606
Model year since 2011 : Part number : ISO 7379-12.9-8-М6х20
Please note that delivery times may vary depending on available stock.
Part n°73 on the motorcycle frame diagram
Spring (7204312-01) for the motorcycle frame (carburetor part)
Part number : 7204312-01
Please note that delivery times may vary depending on available stock.
Part n°76 on the motorcycle frame diagram
Bushing (IMZ-8.1037-05610-10) for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-05610-10
Please note that delivery times may vary depending on available stock.
75 - ISO 7379-12.9-12-M10x16
Part n°75 on the motorcycle frame diagram
Axle for shift lever 2013-2016 for the motorcycle frame (carburetor part)
Part number : ISO 7379-12.9-12-M10x16
Please note that delivery times may vary depending on available stock.
76 - IMZ-8.1037-05610-10
Part n°78 on the motorcycle frame diagram
Shaft without locking and screws for motorcycle frame (carburetor part)
Model year until 2007 : Part number : IMZ-8.107-05248
Model year from 2008 to 2012 : Part number : IMZ-8.107-05055
Please note that delivery times may vary depending on available stock.
Part n°77 on the motorcycle frame diagram
Gear shift lever TWD from 2006 to 05/2018 for the motorcycle frame (carburetor part)
Part number : IMZ-8.1037-05237-10
Please note that delivery times may vary depending on available stock.
80 - IMZ-8.107-05256
79 - IMZ-107-11052
Part n°80 on the motorcycle frame diagram
Lock bushing (IMZ-8.107-05256) for the motorcycle frame (carburetor part)
Part number : IMZ-8.107-05256
Please note that delivery times may vary depending on available stock.
Part n°79 on the motorcycle frame diagram
Ball joint for the motorcycle frame (carburetor part)
Part number : IMZ-107-11052
Please note that delivery times may vary depending on available stock.
Part n°82 on the motorcycle frame diagram
Spring washer 8L for the motorcycle frame (carburetor part)
Part number : E03602
Please note that delivery times may vary depending on available stock.
Part n°81 on the motorcycle frame diagram
Nut M8 for the motorcycle frame (carburetor part)
Part number : E00911
Please note that delivery times may vary depending on available stock.
84 - E00870
83 - E03502
Part n°88 on the motorcycle frame diagram
Nut M6 self locking for the motorcycle frame (carburetor part)
Part number : E00869
Please note that delivery times may vary depending on available stock.
Part n°87 on the motorcycle frame diagram
Washer 6 for the motorcycle frame (carburetor part)
Part number : E03500
Please note that delivery times may vary depending on available stock.
