3 - DIN 961 M8x1x16
4 - IMZ-8.103-04348
9 - IMZ-8.103-04044-10
10 - IMZ-8.103-04315

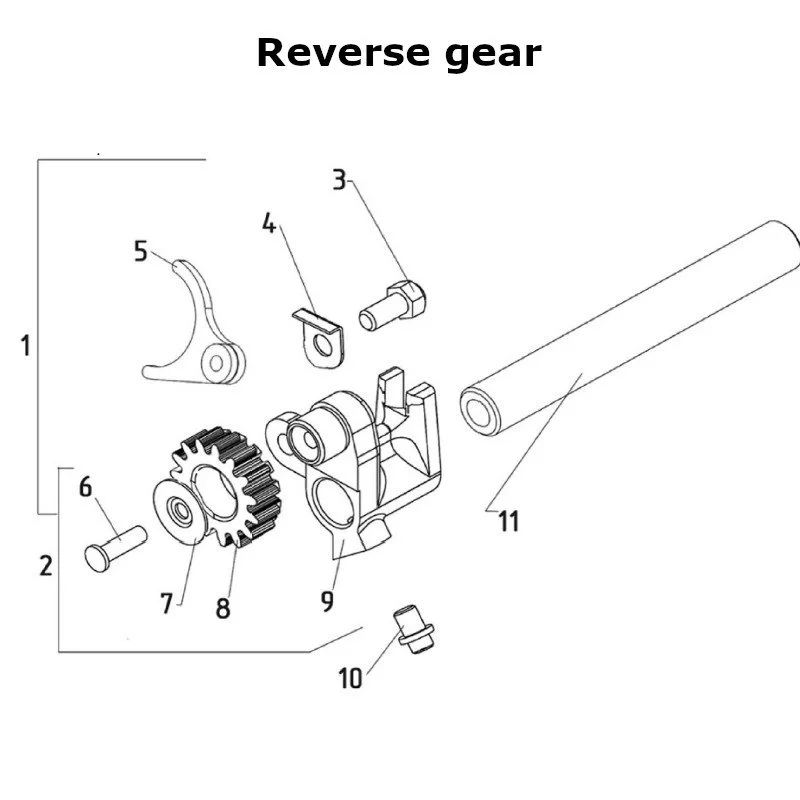

Ural part n°11 on the reverse gear diagram
Shaft (IMZ-8.103-04248) for the reverse gear (carburetor part)
Part number: IMZ-8.103-04248
Please note that delivery times may vary depending on available stock.
Carburetor parts > Gearbox > Reverse gear
5 - IMZ-8.103-04053-01
6 - 2101-6206140
7 - IMZ-8.103-04343
8 - 2 Variants
11 - IMZ-8.103-04248
2 - 2 Variants
1 - 2 Variants
Ural part n°2 on the reverse gear diagram
Reverse gear bracket with idler gear (carburetor part)
Model year until 2006 : Part number : IMZ-8.103-04025-11
Model year since 2007 : Part number : IMZ-8.128-04025-01
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Ural part n°1 on the reverse gear diagram
Reverse gear assembly with bracket (carburetor part)
Model year until 2006 : Part number : IMZ-8.103-04043-01
Model year since 2007 : Part number : IMZ-8.128-04024
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Ural part n°4 on the reverse gear diagram
Lock washer (IMZ-8.103-04348) for the reverse gear (carburetor part)
Part number: IMZ-8.103-04348
Please note that delivery times may vary depending on available stock.
Ural part n°3 on the reverse gear diagram
Screw M8x1x16 for the reverse gear (carburetor part)
Part number : DIN 961 M8x1x16
Please note that delivery times may vary depending on available stock.
Ural part n°6 on the reverse gear diagram
Rivet until 2017 for the reverse gear (carburetor part)
Part number : 2101-6206140
Please note that delivery times may vary depending on available stock.
Ural part n°5 on the reverse gear diagram
Reverse gear shift fork for the reverse gear (carburetor part)
Part number : IMZ-8.103-04053-01
Please note that delivery times may vary depending on available stock.
Ural part n°8 on the reverse gear diagram
Idler gear for the reverse gear (carburetor part)
Model year until 2006 : Part number : IMZ-8.103-04061-20
Model year since 2007 : Part number : IMZ-8.128-04061-40
Please note that delivery times may vary depending on available stock.
Ural part n°7 on the reverse gear diagram
Washer (IMZ-8.103-04343) for the reverse gear (carburetor part)
Part number : IMZ-8.103-04343
Please note that delivery times may vary depending on available stock.
Ural part n°10 on the reverse gear diagram
Pin (IMZ-8.103-04315) for the reverse gear (carburetor part)
Part number : IMZ-8.103-04315
Please note that delivery times may vary depending on available stock.
Ural part n°9 on the reverse gear diagram
Bracket bis 2017 for the reverse gear (carburetor part)
Part number: IMZ-8.103-04044-10
Please note that delivery times may vary depending on available stock.
