EFI parts > Final drive > Drive shaft
1 - IMZ-8.1037-05040-10
1 - IMZ-8.1236-05040-30
2 - 72-05013/BL
3 - 2 Variants

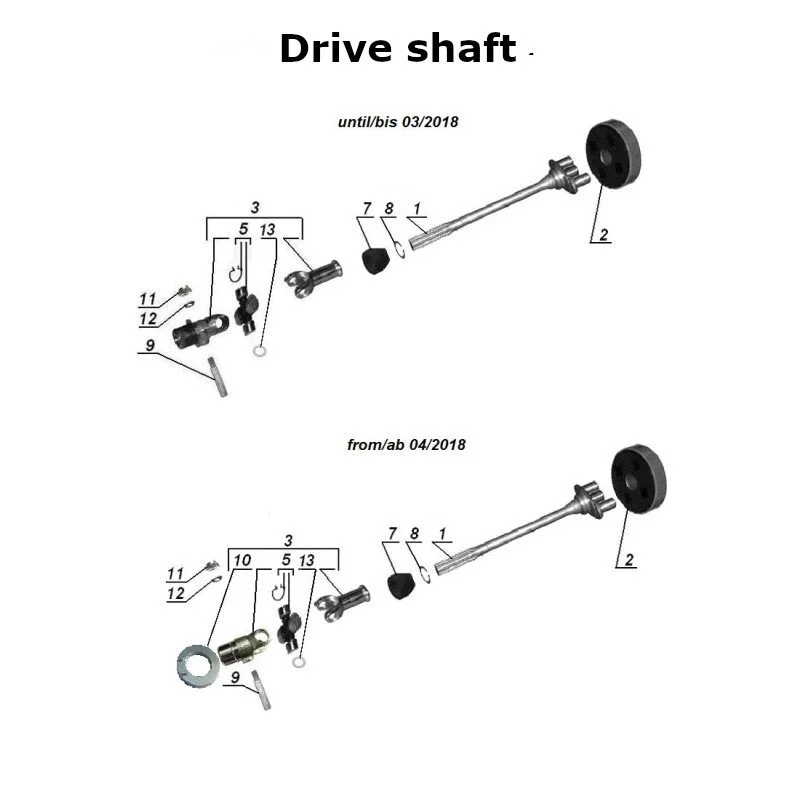

Ural part for EFI injection engine n°2 on driveshaft diagram
This is the current version of the original rubber coupling (flexible U-coupling) which is fitted between the gearbox output (flexible coupling plate) and the final driveshaft.
Suitable for all Ural models from 2006 to today.
Suitable for left- and right-hand Ural sidecars.
Sold individually
Part number: IMZ-8.103-05013/BL
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°3 on drive shaft diagram
U-joint and damper for drive shaft
Model year since 04/2018 : Part number : IMZ-8.1037-05056-20
Model year 2007-03/2018 : Part number : IMZ-8.1037-05056
Please note that delivery times may vary depending on available stock.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
5 - IMZ-8.1037-05017
7 - IMZ-8.1037-05302
Ural part for EFI injection engine n°5 on drive shaft diagram
U-joint cross assembly from 2009 for drive shaft
Part number : IMZ-8.1037-05017
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°7 on drive shaft diagram
Protective cover for drive shaft from 2007
Part number : IMZ-8.1037-05302
Please note that delivery times may vary according to stock availability.
8 - IMZ-8.101-05310
9 - 7205323-10
10 - IMZ-8.1040-05304
11 - E00870
12 - E03502
13 - DIN 988 13x19x0.1
Ural part for EFI injection engine n°12 on drive shaft diagram
Washer 8 for drive shaft
Part number : E03502
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°13 on drive shaft diagram
Shim 0.1 mm thick for drive shaft
Part number: DIN 988 13x19x0.1
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°1 on drive shaft diagram
Drive shaft Retro without U-joint and damper since 2007
Part number: IMZ-8.1236-05040-30
Please note that delivery times may vary according to stock availability.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI injection engine n°1 on drive shaft diagram
Drive shaft assembly without U-joint and damper since 2007
Part number : IMZ-8.1037-05040-10
Please note that delivery times may vary according to stock availability.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI injection engine n°9 on drive shaft diagram
Wedge Bolt from 2013 for drive shaft
Part number : 7205323-10
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°8 on driveshaft diagram
Circlip (IMZ-8.101-05310) for driveshaft
Part number : IMZ-8.101-05310
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection motor n°11 on drive shaft diagram
Nut M8 self locking for drive shaft
Part number : E00870
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°10 on drive shaft diagram
Protective washer from 04/2018 for drive shaft
Part number : IMZ-8.1040-05304
Please note that delivery times may vary according to stock availability.
