EFI parts > Front wheel > Front wheel
1 - 4 Variants
2 - 61050063

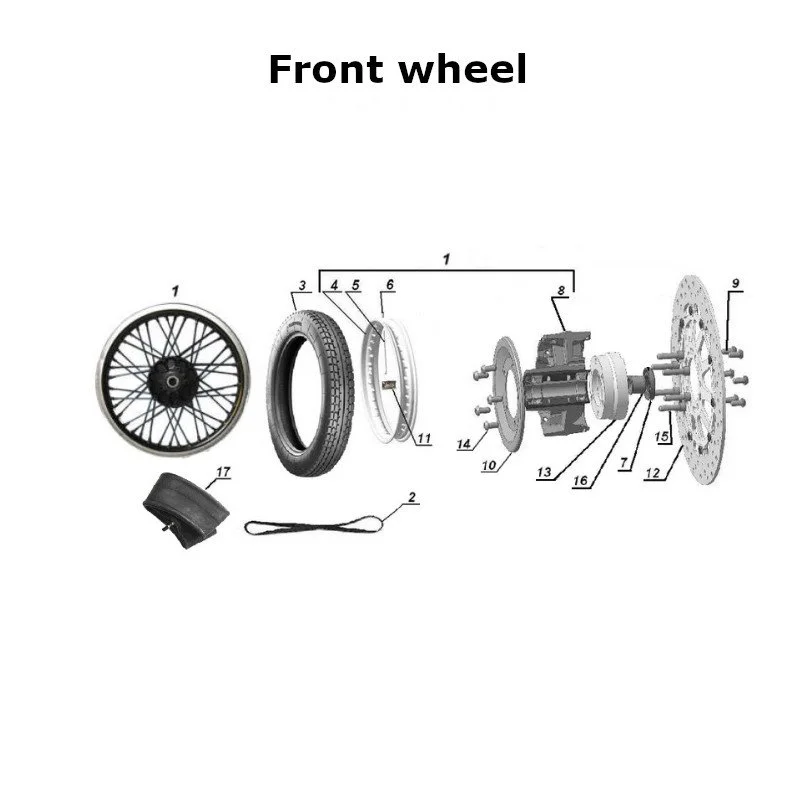

Ural part for EFI injection engine n°1 on the front wheel diagram
Complete front wheel and small hub. Aluminum rims. Available in 18" and 19" diameters. Tires and discs must be ordered separately.
Part number : IMZ-8.1240-06002 : Model 18" Silver
Part number : IMZ-8.1240-06002-01 : Model 18" Black
Part number : IMZ-8.1040-06002 : Model 19" Silvern
Part number : IMZ-8.1040-06002-01 : Model 19" Black
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Ural part for EFI injection engine n°2 on the front wheel diagram
Heidenau tire flap are manufactured by Reifenwerk Heidenau at its historic factory on the outskirts of Dresden, Germany. The rubber compound was developed by the manufacturer's chemists. Made from natural rubber, it provides better sealing and gives the rim strips greater durability than the butyl-based equivalents commonly found on the market.
These tire flaps complement Heidenau inner tubes to get the most out of your tires when mounted on non-sealed spoke rims.
Part number : 61050063
Please note that delivery times may vary depending on available stock.
3 - 2 Variants
3 - 11140065
Ural part for EFI injection engine n°3 on the front wheel diagram
Designed for sidecars used mainly on the road, Heidenau K28 tires feature a square profile to optimize the contact patch with the ground, thereby improving cornering grip and reducing braking distances. The tread pattern combines continuous center strips and blocks to deliver precise handling and optimal water evacuation from the contact patch.
The load and speed indicators allow you to rack up the miles with your gear and luggage without any worries, even on expressways.
Available sizes :
4.00-18 70P Reinforced - Part number : 11130091
4.00-19 71P - Part number : 11130152
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°3 on the front wheel diagram
Heidenau designed the K37 4.00-19 to meet the specific constraints of Ural sidecars and the requirements of their users. The German manufacturer was chosen by Ural to equip its factory-built sidecars.
Designed for mixed on-road and off-road use, the K37 combines a narrow width with deep treads for traction on trails and a flat profile for maximum ground contact to ensure optimal grip on the road.
Renowned for its versatility and durability, the K37 also stands out for its long service life, making it the benchmark classic sidecar tire in terms of mileage.
Like all Heidenau products, the K37 tires are manufactured in the historic factory located in the suburbs of Dresden.
Part number : 11140065
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
3 - 4027694140696
3 - MITE054.00x19
Ural part for EFI injection engine n°3 on the front wheel diagram
Heidenau designed the K37 4.00-19 SW to meet the specific constraints of Ural sidecars and the requirements of their users. The German manufacturer was chosen by Ural to equip its factory-built sidecars.
Designed for mixed on-road and off-road use, the K37 combines a narrow width with deep treads for traction on trails and a flat profile for maximum ground contact to ensure optimal grip on the road.
Renowned for its versatility and durability, the K37 also stands out for its long service life, making it the benchmark classic sidecar tire in terms of mileage.
This is an evolution of the Heidenau K37 tire with a flatter, less rounded profile.
Part number : 4027694140696
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.

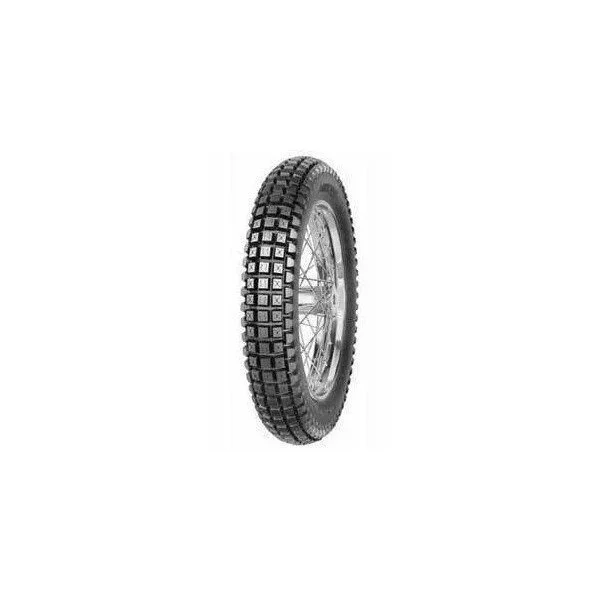

Ural part for EFI injection engine n°3 on the front wheel diagram
If you are looking for versatile performance on all types of terrain and a classic tread pattern.
The Trail E-05 tread pattern and compound are specially designed for classic sidecars, ensuring grip, stability, and durability.
Part number : MITE054.00x19
Please note that delivery times may vary depending on available stock.
3 - 109700
3 - 223312
Ural part for EFI injection engine n°3 on the front wheel diagram
Classic design combined with a modern compound solution that improves grip and traction properties in all situations.
Even tread wear and abrasion-resistant compound for increased longevity and improved performance.
Part number : 109700
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Ural part for EFI injection engine n°3 on the front wheel diagram
Mitas H-02 Superside tires are an economical alternative to Heidenau K28 sidecar tires. Directly derived from H-02 motorcycle tires, they feature the symmetrical style typical of neo-retro tires and a reinforced sidewall carcass designed to withstand the specific stresses of sidecar motorcycles.
The design of the tread pattern makes this tire primarily intended for road use. Mitas H-02 tires are tube type (TT) tires and therefore require the use of an inner tube.
Dimension :
4.00-19 71P TT
Part number : 223312
Please note that delivery times may vary depending on available stock.
4 - 4 Variants
5 - 4 Variants
6 - 3 Variants
7 - IMZ-8.1040-06006
Ural part for EFI injection engine n°6 on the front wheel diagram
Nipple for the front wheel
Part number : IMZ-8.1037-06125 : Silver model
Part number : IMZ-8.1037-06125-BL : Black model
Part number : IMZ-8.1037-06125-01 : Zinc model
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°7 on the front wheel diagram
Shaft seal (IMZ-8.1040-06006) for the front wheel
Part number : IMZ-8.1040-06006
Please note that delivery times may vary depending on available stock.
8 - 2 Variants
9 - E42996
10 - 2 Variants
11 - 2 Variants
14 - ISO 7380 M8x16
15 - E01546
16 - IMZ-8.1040-06133
17 - 3 Variants
Ural part for EFI injection engine n°16 on the front wheel diagram
Right distance bushing (IMZ-8.1040-06133) for the front wheel
Part number : IMZ-8.1040-06133
Please note that delivery times may vary depending on available stock.

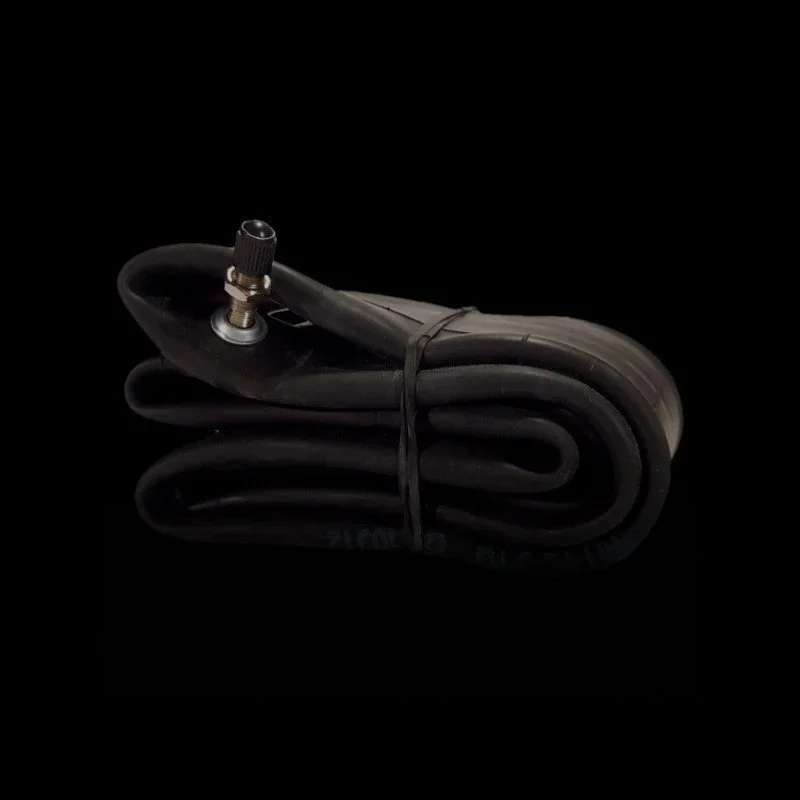

Ural part for EFI injection engine n°17 on the front wheel diagram
Heidenau inner tubes differ from standard models in that they use natural rubber instead of butyl. This makes them more resistant and less porous, allowing you to set off on your adventures with complete peace of mind.
Standard models have an average thickness of 2 mm. For those who wish to embark on particularly demanding journeys, we recommend choosing reinforced models with a thickness of 3 mm.
Available sizes :
18E for 3.50-18 and 4.00-18 tires - Part number : 61020332
19E for 4.00-9 tires - Part number : 61020352
19E Reinforced rim for 4.00-19 tires - Part number : 61020353
Please note that delivery times may vary depending on available stock.
Save time with the Ural K37 Pack. 100% made in Germany. Tailored for adventure.
3 x K37 4.00-19 SW tires
3 x reinforced tire tubes made from natural rubber 19E Cr.
3 x natural rubber tire flap 28 x 18/19
Part number : H-K37-40019-Pack
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Special pack - H-K37-40019-Pack
Ural part for EFI injection engine n°5 on the front wheel diagram
Spoke wheel with disc brake. Available in 18" and 19" diameters, front wheel.
Part number : IMZ-8.1239-06120-01 : Model 18” Silver
Part number : IMZ-8.1239-06120-BL : Model 18” Black
Part number : IMZ-8.1037-06120-01 : Model 19” Silver
Part number : IMZ-8.1037-06120-BL : Model 19” Black
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°4 on the front wheel diagram
Aluminum rims for wheels with disc brakes. Available in 18" and 19" diameters, front wheel.
Part number : IMZ-8.1239-06117-06 : Model 18” Silver
Part number : IMZ-8.1239-06117-05 : Model 18” Black
Part number : IMZ-8.1037-06117-06 : Model 19” Silver
Part number : IMZ-8.1037-06117-05 : Model 19” Black
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.

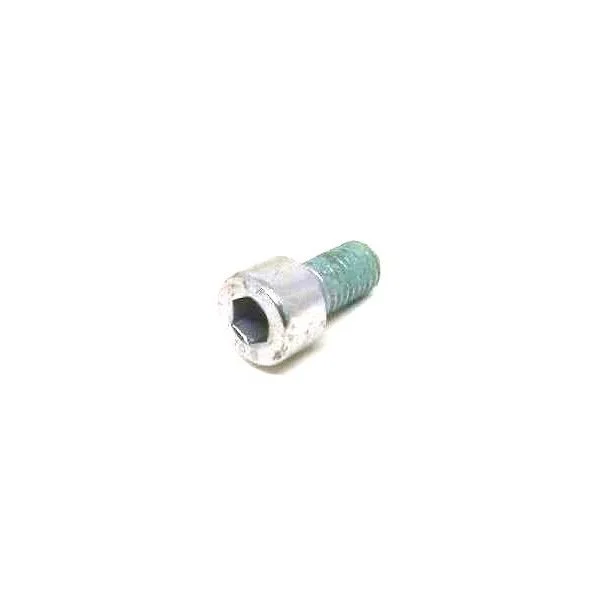

Ural part for EFI injection engine n°9 on the front wheel diagram
Socket head cap screw M8x20 10.9 for the front wheel
Part number : E42996
Please note that delivery times may vary depending on available stock.

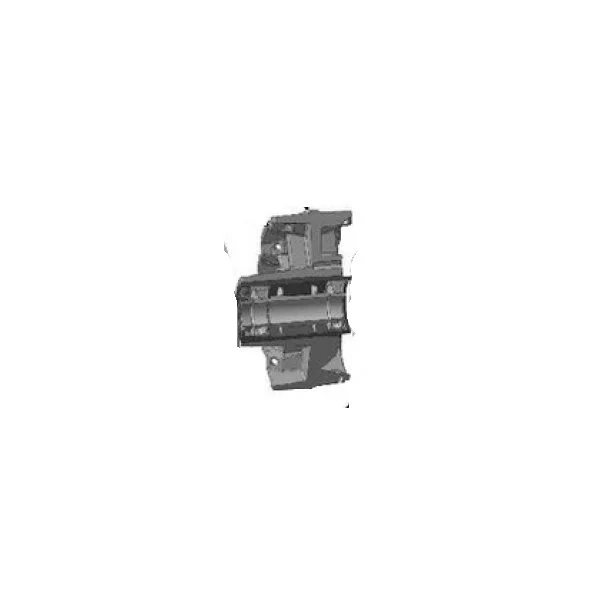

Ural part for EFI injection engine n°8 on the front wheel diagram
Complete hub with spacers, bearings, circlips, and O-rings, front wheel
For sidecars up to serial number VIN 230405
Part number : IMZ-8.1040-06017-01 : Black model
Part number : IMZ-8.1040-06017-02 : Grey model
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
Ural part for EFI injection engine n°11 on the front wheel diagram
Balancer weight (self adhesive) for the front wheel
Part number : 595-81 : Black model
Part number : 595-82 : Silver model
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°10 on the front wheel diagram
Protective cover for the front wheel
Part number : IMZ-8.1040-06140-02 : Black model
Part number : IMZ-8.1040-06140-03 : Grey model
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°13 on the front wheel diagram
Mounting bracket for standard brake discs. For all models from 2014 onwards, select according to the serial number of your sidecar.
Part number : IMZ-8.1040-06132 : For models up to serial number 230384
Part number : IMZ-8.1040-06132-10 : For models with serial numbers starting with 230385
Please note that delivery times may vary depending on available stock.
12 - IMZ-8.1037-06026-NG
Ural part for EFI injection engine n°12 on the front wheel diagram
Brake disc for all Ural sidecar models from 2007 onwards. Screw onto the brackets specific to your motorcycle's serial number.
Part number : IMZ-8.1037-06026-NG
Please note that delivery times may vary depending on available stock.
Refund insurance is included in the shipping costs in case your package is lost.
13 - IMZ-8.1040-06132
Ural part for EFI injection engine n°15 on the front wheel diagram
Socket head cap screw M8x30 since 2006 for the front wheel
Part number : E01546
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°14 on the front wheel diagram
Screw M8x16 ISO 7380 for the front wheel
Part number : ISO 7380 M8x16
Please note that delivery times may vary depending on available stock.
