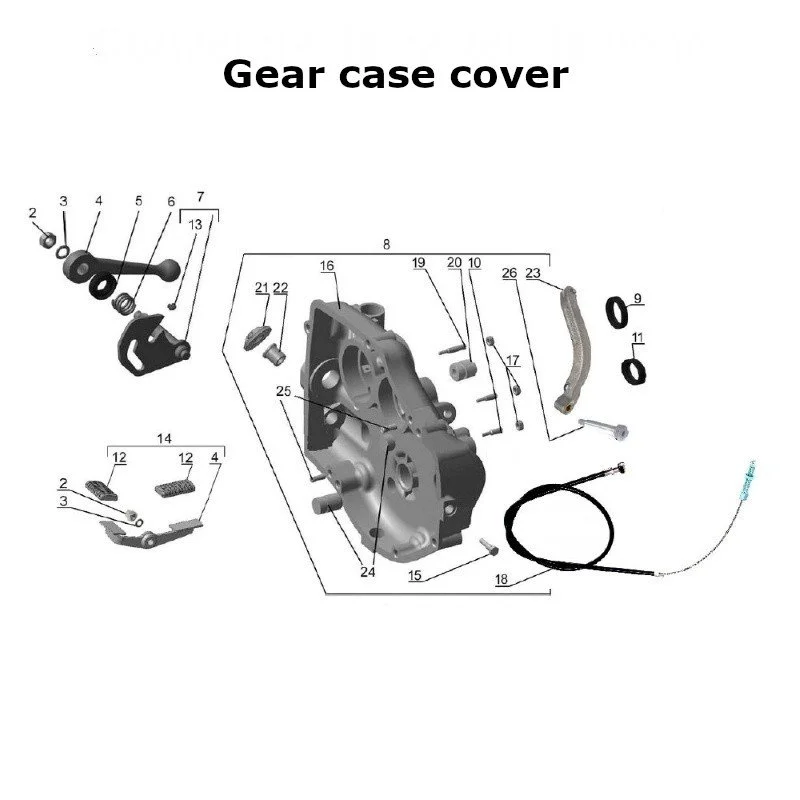

Les pièces Ural EFI > Boîte de vitesses > Carter de boîte

2 - E00911

3 - E03602

N°2 Nut M8 for gear case cover

2,00 €

N°3 Spring washer 8L for gear case cover

1,00 €

N°4 Reverse gear shift lever, black until 2016 for gear case cover

70,00 €

4 - IMZ-8.903-04316-01-CR

4 - IMZ-8.903-04316

N°4 Reverse gear shift lever, Aluminium until 2016 for gear case cover

90,00 €

4 - IMZ-8.903-04316-01

4 - IMZ-8.1040-04016

N°4 Reverse gear shift lever, Aluminium until 2016 for gear case cover

90,00 €

N°4 Reverse gear shift pedal from 2017 for gear case cover

Sur commande

N°4 Reverse gear shift pedal from 2017 for gear case cover

90,00 €

5 - IMZ-8.128-04017

6 - 7204312-01

N°5 Oil seal (IMZ-8.128-04017) for gear case cover

16,00 €

N°6 Spring (7204312-01) for gear case cover

11,00 €

7 - IMZ-8.1040-04028

8 - 2 Variants

N°7 Reverse gear quadrant from 2006 for gear case cover

130,00 €

N°8 Gear case cover set since 2017

235,00 €

9 - IMZ-8.128-04015

10 - 6204332-01

N°9 Oil seal from 07/2005 for gear case cover

29,00 €

N°10 Stop screw (6204332-01) for gear case cover

6,00 €

11 - IMZ-8.128-04048

12 - IMZ-8.1040-04170

N°11 Oil seal (IMZ-8.128-04048) for gear case cover

20,00 €

N°12 Rubber sleeves from 2017 for gear case cover

20,00 €

13 - 252539-P

14 - IMZ-8.1040-04009

N°13 Rivet until 05/2019 for gear case cover

2,00 €

N°14 Reverse gear shift pedal from 2017, assembly for gear case cover

92,00 €

15 - IMZ-8.103-04117-01

16 - 2 Variants

N°15 Spring retainer screw for gear case cover

12,00 €

N°16 Gear case cover from 2006 to 2016

à partir de 215,00 €

16 - 2 Variants

17 - E00861

N°16 Gear case cover empty since 2020

à partir de 180,00 €

N°17 Nut M8x1-6H for gear case cover

4,00 €

N°18 Clutch cable since 2020 for gear case cover

34,00 €

N°19 Adjusting screw (IMZ-8.103-04333-01) for gear case cover

4,00 €

20 - IMZ-8.104-03206-20

21 - IMZ-8.103-04109-11

N°20 Clutch release slider from 2020 for gear case cover

23,00 €

N°21 Gear case cover, rightside from 2017

18,00 €

22 - IMZ-8.103-04130

23 - IMZ-8.1040-03023

24 - IMZ-8.103-04103-01

25 - 368205

N°24 Thrust (IMZ-8.103-04103-01) for gear case cover

12,00 €

N°25 Dowel pin (368205) for gear case cover

6,00 €

26 - E09232

N°26 Special screw from 2017 for gear case cover

20,00 €

19 - IMZ-8.103-04333-01

18 - IMZ-8.1037-11032-11

N°23 Clutch release lever from VIN 230458 for gear case cover

104,00 €

N°22 Quadrant shaft sleeve for gear case cover

20,00 €
