EFI parts > Gearbox > Gearbox

1 - 6 variants

2 - E00870

N°1 Gearbox assembly since 2007 N°1 Gearbox assembly since 2007 N°1 Gearbox assembly since 2007 N°1 Gearbox assembly since 2007 N°1 Gearbox assembly since 2007 N°1 Gearbox assembly since 2007 N°1 Gearbox assembly since 2007
N°1 Gearbox assembly since 2007
à partir de 2 125,00 €

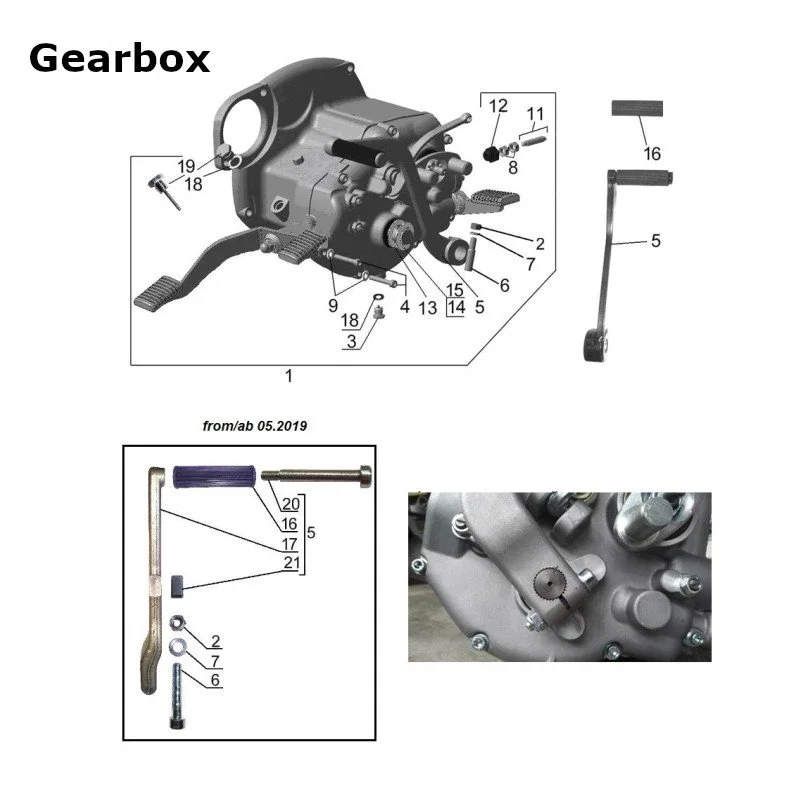

Ural part for EFI injection engine n°1 on the gearbox diagram

Gearbox assembly since 2007

  1. Part number : 2007-2016 models, gray engine : IMZ-8.128-04001

  2. Part number : 2007-2016 models, black engine : IMZ-8.128-04001-BL

  3. Part number : 2017-2019 models, gray engine : IMZ-8.128-04001-50

  4. Part number : 2017-2019 models, black engine : IMZ-8-128-04001-50-BL

  5. Part number : Models from 2020 onwards, gray engine : IMZ-8.128-04001-80

  6. Part number : Models from 2020 onwards, black engine : IMZ-8.128-04001-80-BL

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°2 Nut M8 self locking for gearbox N°2 Nut M8 self locking for gearbox
N°2 Nut M8 self locking for gearbox
1,00 €

Ural part for EFI injection engine n°2 on the gearbox diagram

Nut M8 self locking for gearbox

  • Part number : E00870

Please note that delivery times may vary depending on available stock.

N°3/N°19 Drain plug magnetic aluminium with sealing for gearbox N°3/N°19 Drain plug magnetic aluminium with sealing for gearbox
N°3/N°19 Drain plug magnetic aluminium with sealing for gearbox
18,00 €

Ural part for EFI injection engine n°3 and n°19 on the gearbox diagram

Drain plug magnetic aluminium with sealing for gearbox

  1. Part number: IMZ-8.128-01459-01

Please note that delivery times may vary depending on available stock.

3 & 19 - IMZ-8.128-01459-01

4 - E01536

N°4 Socket head cap screw M6x40 for gearbox N°4 Socket head cap screw M6x40 for gearbox
N°4 Socket head cap screw M6x40 for gearbox
3,00 €

Ural part for EFI injection engine n°4 on the gearbox diagram

Socket head cap screw M6x40 for gearbox

  1. Part number : E01536

Please note that delivery times may vary depending on available stock.

5 - IMZ-8.1036-04045-13

5 - IMZ-8.1042-04045

N°5 Kick start lever 2006-04/2019, black for gearbox N°5 Kick start lever 2006-04/2019, black for gearbox
N°5 Kick start lever 2006-04/2019, black for gearbox
53,00 €

Ural part for EFI injection engine n°5 in the gearbox diagram

Kick start lever 2006-04/2019, black for gearbox

  1. Part number : IMZ-8.1036-04045-13

Please note that delivery times may vary depending on available stock.

N°5 Kick starter lever Retro since 2016 for gearbox N°5 Kick starter lever Retro since 2016 for gearbox
N°5 Kick starter lever Retro since 2016 for gearbox
67,00 €

Ural part for EFI injection engine n°5 in the gearbox diagram

Kick starter lever Retro since 2016 for gearbox

  1. Part number: IMZ-8.1042-04045

Please note that delivery times may vary depending on available stock.

5 - IMZ-8-1040-04045

6 - 7204417

6 - E07697

7 - E03502

N°6 Socket head cap screw M8x45 from 2006 for gearbox N°6 Socket head cap screw M8x45 from 2006 for gearbox
N°6 Socket head cap screw M8x45 from 2006 for gearbox
6,00 €

Ural part for EFI injection engine n°6 on the gearbox diagram

Socket head cap screw M8x45 from 2006 for gearbox

  1. Part number : E07697

Please note that delivery times may vary depending on available stock.

N°7 Washer 8 for gearbox N°7 Washer 8 for gearbox
N°7 Washer 8 for gearbox
1,00 €

Ural part for EFI injection engine n°7 on the gearbox diagram

Washer 8 for gearbox

  • Part number : E03502

Please note that delivery times may vary depending on available stock.

N°8/N°11/N°12 Neutral sensor, set for gearbox N°8/N°11/N°12 Neutral sensor, set for gearbox
N°8/N°11/N°12 Neutral sensor, set for gearbox
40,00 €

Kit containing parts n°8, n°11, and n°12 from the gearbox diagram

Neutral sensor, set for gearbox

  1. Part number: IMZ-8.1037-04059

Please note that delivery times may vary depending on available stock.

8,11 & 12 - IMZ-8.1037-04059

9 - E03500

N°9 Washer 6 for gearbox N°9 Washer 6 for gearbox
N°9 Washer 6 for gearbox
1,00 €

Ural part for EFI injection engine n°9 on the gearbox diagram

Washer 6 for gearbox

  1. Part number: E03500

Please note that delivery times may vary depending on available stock.

13 - E17813

14 - 7205320

N°13 Washer 20 mm for gearbox N°13 Washer 20 mm for gearbox
N°13 Washer 20 mm for gearbox
4,00 €

Ural part for EFI injection engine n°13 on the gearbox diagram

Washer 20 mm for gearbox

  1. Part number: E17813

Please note that delivery times may vary depending on available stock.

N°14 Adjusting shim, 0.40…0,36 mm for gearbox N°14 Adjusting shim, 0.40…0,36 mm for gearbox
N°14 Adjusting shim, 0.40…0,36 mm for gearbox
5,00 €

Ural part for EFI injection engine n°14 on the gearbox diagram

Adjusting shim, 0.40…0,36 mm for gearbox

  1. Part number: 7205320

Please note that delivery times may vary depending on available stock.

15 - 6205319

16 - 7204422

17 - IMZ-8.1040-04426

18 - 330454

19 - IMZ-8.1040-04092

20 - IMZ-8.1040-04420

21 - IMZ-8.1040-09186-10

N°21 Restrain pad from 05/2019 for gearbox N°21 Restrain pad from 05/2019 for gearbox
N°21 Restrain pad from 05/2019 for gearbox
15,00 €

Ural part for EFI injection engine n°21 on the gearbox diagram

Restrain pad from 05/2019 for gearbox

  1. Part number: IMZ-8.1040-09186-10

Please note that delivery times may vary depending on available stock.
N°6 Wedge, Kick starter lever for gearbox N°6 Wedge, Kick starter lever for gearbox
N°6 Wedge, Kick starter lever for gearbox
6,00 €

Ural part for EFI injection engine n°6 in the gearbox diagram

Wedge, Kick starter lever for gearbox

  • Part number: 7204417

Please note that delivery times may vary depending on available stock.

N°5 Kick start lever complete from 05/2019 for gearbox N°5 Kick start lever complete from 05/2019 for gearbox
N°5 Kick start lever complete from 05/2019 for gearbox
85,00 €

Ural part for EFI injection engine n°5 in the gearbox diagram

Kick start lever complete from 05/2019 for gearbox

  1. Part number: IMZ-8-1040-04045

Please note that delivery times may vary depending on available stock.

N°16 Kick start lever sleeve since 2017 for gearbox N°16 Kick start lever sleeve since 2017 for gearbox
N°16 Kick start lever sleeve since 2017 for gearbox
13,00 €

Ural part for EFI injection engine n°16 in the gearbox diagram

Kick start lever sleeve since 2017 for gearbox

  1. Part number: IMZ-8.1040-04422

Please note that delivery times may vary depending on available stock.

N°15 Adjusting shim 0.18…0.16 mm for gearbox N°15 Adjusting shim 0.18…0.16 mm for gearbox
N°15 Adjusting shim 0.18…0.16 mm for gearbox
5,00 €

Ural part for EFI injection engine n°15 on the gearbox diagram

Adjusting shim 0.18…0.16 mm for gearbox

  • Part number : 6205319

Please note that delivery times may vary depending on available stock.

N°18 Sealing ring aluminium 14 mm for gearbox N°18 Sealing ring aluminium 14 mm for gearbox
N°18 Sealing ring aluminium 14 mm for gearbox
4,00 €

Ural part for EFI injection engine n°18 on the gearbox diagram

Sealing ring aluminium 14 mm for gearbox

  1. Part number : 368802

Please note that delivery times may vary depending on available stock.

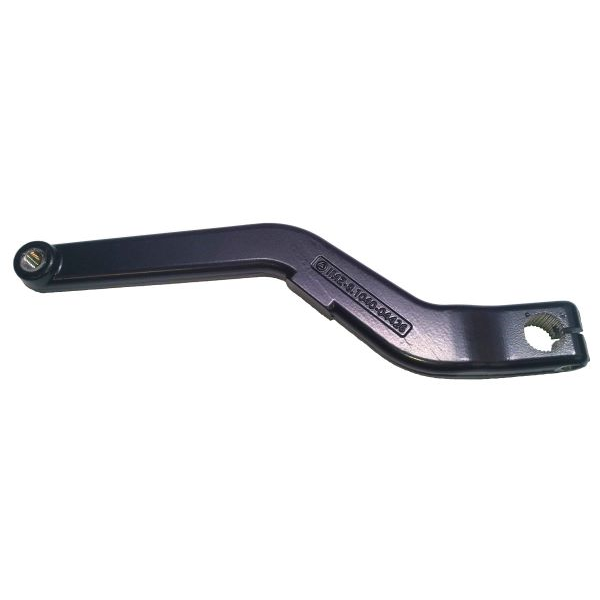

N°17 Kick start lever from 05/2019 for gearbox N°17 Kick start lever from 05/2019 for gearbox
N°17 Kick start lever from 05/2019 for gearbox
53,00 €

Ural part for EFI injection engine n°17 in the gearbox diagram

Kick start lever from 05/2019 for gearbox

  • Part number: IMZ-8.1040-04426

Please note that delivery times may vary depending on available stock.

N°20 Kick start lever screw for gearbox N°20 Kick start lever screw for gearbox
N°20 Kick start lever screw for gearbox
32,00 €

Ural part for EFI injection engine n°20 in the gearbox diagram

Kick start lever screw for gearbox

  1. Part number : IMZ-8.1040-04420

Please note that delivery times may vary depending on available stock.

N°19 Oil dipstick from 2017 for gearbox N°19 Oil dipstick from 2017 for gearbox
N°19 Oil dipstick from 2017 for gearbox
12,00 €

Ural part for EFI injection engine n°19 in the gearbox diagram

Oil dipstick from 2017 for gearbox

  1. Part number: IMZ-8.1040-04092

Please note that delivery times may vary depending on available stock.
