3 - IMZ-8.1040-15143-01
4 - IMZ-8.1040-15235
Ural part for EFI injection engine n°34 on intake diagram
Socket head cap screw M4x8 for intake
Part number : E07547
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°35 on intake diagram
Rubber vacuum port cap for intake
Part number: IMZ-8.1040-15347
Please note that delivery times may vary according to stock availability.
35 - ISO 7380 M6x8
36 - T09639
Ural part for EFI injection engine n°35 on intake diagram
Screw M6x8 ISO 7380 for intake
Part number : ISO 7380 M6x8
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°36 on intake diagram
Sealing ring (T09639) for intake
Part number : T09639
Please note that delivery times may vary according to stock availability.
37 - IMZ-8.1040-15099
38 - IMZ-8.1040-15310
39 - IMZ-8.1040-15339
40 - IMZ-8.1040-15110
Ural part for EFI injection engine n°39 on intake diagram
Cover (IMZ-8.1040-15339) for intake
Part number : IMZ-8.1040-15339
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°40 intake diagram
Connecting rubber tube for intake
The connection ring fits the left and right sides of the GENII EFI throttle body position to the intake manifold since 2019. This ring fits all left and right Ural sidecar models since 2019.
Part number: IMZ-8.1040-15110
Please note that delivery times may vary depending on available stock.
41 - IMZ-8.1040-17069
42 - IMZ-8.1040-15008-10
43 & 44 - 4 Variants
45 - IMZ-8.1040-15314-10
Ural part for EFI injection engine n°43 (right side) and n°44 (left side) on intake diagram
Injector body with Injector for intake
Rightside and model year since 2022: Part number: IMZ-8.1040-15094-11
Rightside and model year 2019-2021: Part number: IMZ-8.1040-15094
Leftside and model year 2019-2021: Part number: IMZ-8.1040-15095
Leftside and model year since 2022: Part number: IMZ-8.1040-15095-01
Please note that delivery times may vary depending on available stock.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI n°45 injection engine on intake diagram.
Pipe (IMZ-8.1040-15314-10) since 2021 for intake
Part number: IMZ-8.1040-15314-10
Please note that delivery times may vary according to stock availability.
46 - IMZ-8.1040-15344
47 - IMZ-8.1040-15345
Ural part for EFI injection engine n°46 on intake diagram
O-ring for idle speed adjust for intake
Part number: IMZ-8.1040-15344
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°47 on intake diagram
Bracket for idle speed adjust for intake
Part number : IMZ-8.1040-15345
Please note that delivery times may vary according to stock availability.

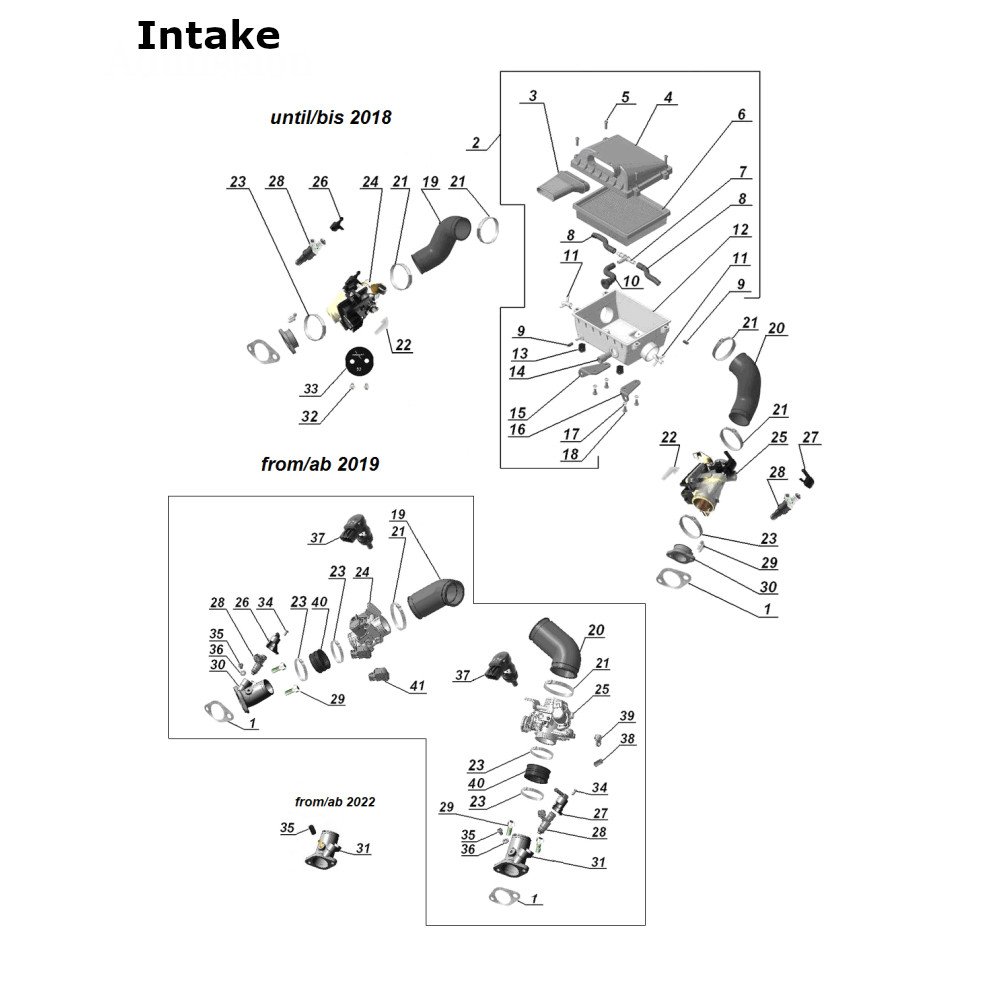

EFI parts > Intake
1 - IMZ-8.1040-15283-01
2 - 3 Variants
5 - ISO 7380 M6x20
5 - ISO 7380 M6x20-BL
Ural part for EFI engine n°5 on intake diagram
Screw M6x20 ISO 7380 for intake
Part number : ISO 7380 M6x20
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°5 on intake diagram
Screw M6x20 ISO 7380, zinc black for intake
Part number : ISO 7380 M6x20-BL
Please note that delivery times may vary according to stock availability.
6 - IMZ-8.1040-15075-03
7 - IMZ-8.1040-15318
Ural part for EFI engine n°6 on intake diagram
Air filter for intake
Part number: IMZ-8.1040-15075-03
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°7 on intake diagram
T-Connector (IMZ-8.1040-15318) for intake
Part number: IMZ-8.1040-15318
Please note that delivery times may vary according to stock availability.
8 - IMZ-8.1040-15315
9 - IMZ-8.1040-15317
Ural part for EFI injection engine n°8 for intake diagram
Pipe (IMZ-8.1040-15315) for intake
Part number : IMZ-8.1040-15315
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°9 on intake diagram
Drain valve until 2016 for intake
Part number: IMZ-8.1040-15317
Please note that delivery times may vary according to stock availability.
9 - IMZ-8.1040-10245
10 - IMZ-8.1040-15314
12 - IMZ-8.1040-15014-10
13 - IMZ-8.1040-15320
14 - IMZ-8.1040-15124
15 - IMZ-8.1040-15161
17 - E03601
18 - E17118
Ural part for EFI injection engine n°19 (right side) and n°20 (left side) of the intake diagram
Branch pipe carburetor for intake
Rightside and model year 2014-2018: Part number : IMZ-8.1040-15114
Rightside and model year since 2019 : Part number : IMZ-8.1040-15114-10
Leftside and model year 2014-2018 : Part number : IMZ-8.1040-15115
Leftside and model year since 2019 : Part number : IMZ-8.1040-15115-10
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°21 on the intake diagram
For mounting on the intake system of all EFI models left and right from 2014 to present, see below for distribution, screw-on collar
Fits left and right airbox to branch pipe and branch pipe to throttle body 2019-today
Fits left and right air box to branch pipe 2014-2018
Part number : IMZ-8.1040-15008
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°21 and n°42 of the intake diagram
Clamp 50x62 for intake, screw clamp
Part number: IMZ-8.1037-15008
Please note that delivery times may vary according to stock availability.
21 & 42 - IMZ-8.1037-15008
22 - SNUFFI
Ural part for EFI engine n°22 on intake diagram
Cover for intake air pressure circuit
Part number : SNUFFI
Please note that delivery times may vary according to stock availability.
23 - IMZ-8.1040-15008-20
23 - IMZ-8.1037-15005
24 & 25 - 2 Variants
26 & 27 - 4 Variants
28 - 3 Variants
29 - E32358
Ural part for EFI engine n°28 on intake diagram
Fuel injector for intake
Model year 2016-2018 : Part number : IMZ-8.1040-15093-R
Model year since 2019 : Part number : IMZ-8.1040-15093-10
Model year 2014-2015 : Part number : IMZ-8.1040-15093-S
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°29 on intake diagram
Socket head cap screw M8x16 for intake
Part number : E32358
Please note that delivery times may vary according to stock availability.
30 - IMZ-8.1040-15096
30 - IMZ-8.128-01811-10
30 - IMZ-8.1040-01811
31 - 2 Variants
Ural part for EFI n°30 injection engine on intake diagram
Throttle body flange without clamp 2016 until 2018 for intake
Part number: IMZ-8.1040-01811
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°31 on intake diagram
Injector body left side for intake
Model year since 2022 : Part number : IMZ-8.1040-15097
Model year 2019-2021 : Part number : IMZ-8.1040-15337
Please note that delivery times may vary depending on available stock.
32 - AF-AF-004-1002
33 - IMZ-8.1040-15333
34 - E07547
35 - IMZ-8.1040-15347
Ural part for EFI engine n°2 on intake diagram
Airfilter box assembly, plastic for intake
Model year since 2019 : Part number: IMZ-8.1040-15003-02
Model year 2017-2018: Part number: IMZ-8.1040-15003-10
Model year 2014-2016: Part number: IMZ-8.1040-15003-01
Please note that delivery times may vary depending on available stock.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI engine n°1 on the intake diagram
This is the latest version of the intake gasket, manufactured from the latest materials and introduced in 2016.
Replaces all previous part numbers IMZ-8.101-15283 to IMZ-8.1041-15283.
Suitable for carburettor and electronic injection models from 2003 to today.
Part number: IMZ-8.1040-15283-01
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°4 for intake diagram
Air filter cover for intake
Part number : IMZ-8.1040-15235
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°3 on intake diagram
Intake branch pipe (IMZ-8.1040-15143-01)
Part number: IMZ-8.1040-15143-01
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°10 on intake diagram
Pipe (IMZ-8.1040-15314) until 2020 for intake
Part number : IMZ-8.1040-15314
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°9 on intake diagram
Protective cap (IMZ-8.1040-10245) for intake
Part number : IMZ-8.1040-10245
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°13 for intake diagram
Protective cap (IMZ-8.1040-15320) for intake
Part number: IMZ-8.1040-15320
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°12 on intake diagram
Air filter box for intake
Part number: IMZ-8.1040-15014-10
Please note that delivery times may vary according to stock availability.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI engine n°15 on intake diagram
Rightside air filter bracket for intake
Part number: IMZ-8.1040-15161
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°14 on intake diagram
Breather pipe bushing for intake
Part number : IMZ-8.1040-15124
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°18 on intake diagram
Cross-head screw M6x12 for intake
Part number : E17118
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°17 on intake diagram
Spring washer 6L for intake
Part number : E03601
Please note that delivery times may vary according to stock availability.
21 - IMZ-8.1040-15008
19 & 20 - 2 Variants
Ural part for EFI injection engine n°23 of the intake diagram
Clamp 32x50 for intake, screw clamp
Part number: IMZ-8.1037-15005
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°23 on intake diagram
Screw-on clamp. This is the original part for the large end of the drive shaft rubber sleeve 2003-2022 and also fits the new position of the GENII EFI throttle body to the intake flange / intake flange to the intake manifold since 2019
Fits left and right throttle body to intake flange / intake flange to intake manifold GENII EFI since 2019.
Fits all left and right Ural 2WD sidecar driveshafts 2003-2022.
Part number : IMZ-8.1040-15008-20
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°26 (right side) and n°27 (left side) of the intake diagram
Injector fitting for intake
Right side model year until 2018 : Part number : IMZ-8.1040-15332
Right side model year from 2019 : Part number : IMZ-8.1040-15332-10
Left side model year since 2019 : Part number : IMZ-8.1040-15331-10
Left side model year until 2018 : Part number : IMZ-8.1040-15331
Please note that delivery times may vary depending on available stock.
Ural part for EFI injection engine n°24 (right side) and n°25 (left side) of the intake diagram
Throttle body from 2019 for intake
Rightside: Part number: IMZ-8.1040-15091-20
Leftside: Part number: IMZ-8.1040-15092-20
Please note that delivery times may vary according to stock availability.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI n°30 injection engine on intake diagram
Carburetor flange KOK without clamp for intake
Part number : IMZ-8.128-01811-10
Please note that delivery times may vary according to stock availability.
Ural part for EFI n°30 injection engine on intake diagram
Injector body right side for intake
Part number : IMZ-8.1040-15096
Please note that delivery times may vary according to stock availability.
A refund insurance is included in the shipping costs, in case of loss of your parcel.
Ural part for EFI injection engine n°33 on intake diagram
Anodized aluminium throttle valve plate including 2 screws for intake
Part number: IMZ-8.1040-15333
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°32 on intake diagram
Thort blade screw M4x7x5 for intake
Part number : AF-AF-004-1002
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°38 on intake diagram
Protective cap (IMZ-8.1040-15310) for intake
Part number : IMZ-8.1040-15310
Please note that delivery times may vary according to stock availability.
Ural part for EFI injection engine n°37 intake diagram
Idle speed adjust for intake
Part number : IMZ-8.1040-15099
Please note that delivery times may vary according to stock availability.
Ural part for EFI engine n°42 on intake diagram
Clamp 57.5 mm (one way) for intake
Screw-on clamp. For GEN1 EFI left and right branch pipe at throttle body position 2014-2018.
Fits left and right branch pipe to throttle body position, GEN1 EFI 2014-2018.
Fits all URAL left and right sidecar models 2014-2018.
Part number : IMZ-8.1040-15008-10
Please note that delivery times may vary depending on available stock.
Ural part for EFI engine n°41 on intake diagram
Throttle position sensor (TPS) for intake
Part number : IMZ-8.1040-17069
Please note that delivery times may vary according to stock availability.
