Carburetor parts > Engine > Upper engine

N°3 Right cylinder head assembly until 2007 for the upper engine (carburetor part) N°3 Right cylinder head assembly until 2007 for the upper engine (carburetor part) N°3 Right cylinder head assembly until 2007 for the upper engine (carburetor part)
N°3 Right cylinder head assembly until 2007 for the upper engine (carburetor part)
à partir de 465,00 €

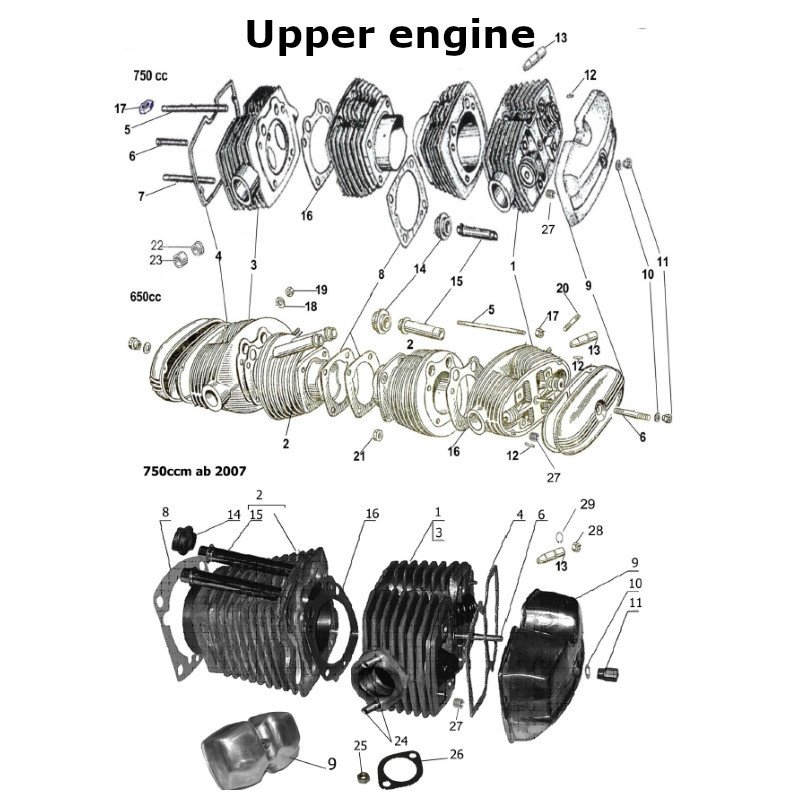

Ural part n°3 on the upper engine diagram

Right cylinder head assembly until 2007 for the upper engine (carburetor part)

  • Model year until 2005 : Part number : IMZ-8.108-01051

  • Model year 2006-2007 : Part number : IMZ-8.108-01051-10

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°3 Right cylinder head assembly since 2008 for upper engine (carburetor part) N°3 Right cylinder head assembly since 2008 for upper engine (carburetor part) N°3 Right cylinder head assembly since 2008 for upper engine (carburetor part)
N°3 Right cylinder head assembly since 2008 for upper engine (carburetor part)
580,00 €

Ural part n°3 on the upper engine diagram

Right cylinder head assembly since 2008 for upper engine (carburetor part)

  • With SAS : Part number : IMZ-8.128-01051-40

  • Without SAS : Part number : IMZ-8.128-01051-30

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

4 - 2 Variants

5 - IMZ-8.108-01304

N°4 Valve cover gasket for upper engine (carburetor part) N°4 Valve cover gasket for upper engine (carburetor part) N°4 Valve cover gasket for upper engine (carburetor part)
N°4 Valve cover gasket for upper engine (carburetor part)
24,00 €

Ural part n°4 on the upper engine diagram

Valve cover gasket for upper engine (carburetor part)

  • 650 cc engine : Part number : 6201517

  • 750 cc engine : Part number : IMZ-8.1037-01517-01

Please note that delivery times may vary depending on available stock.

N°5 Cylinder head fastening stud long for the upper engine (carburetor part) N°5 Cylinder head fastening stud long for the upper engine (carburetor part)
N°5 Cylinder head fastening stud long for the upper engine (carburetor part)
14,00 €

Ural part n°5 on the upper engine diagram

Cylinder head fastening stud long for the upper engine (carburetor part)

  • Part number : IMZ-8.108-01304

Please note that delivery times may vary depending on available stock.

6 - 365664-P27C

6 - 009414-P29

N°6 Stud normal thread for valve cover since 2006 for the upper engine (carburetor part) N°6 Stud normal thread for valve cover since 2006 for the upper engine (carburetor part)
N°6 Stud normal thread for valve cover since 2006 for the upper engine (carburetor part)
9,00 €

Ural part n°6 on the upper engine diagram

Stud normal thread for valve cover since 2006 for the upper engine (carburetor part)

  • Part number : 365664-P27C

Please note that delivery times may vary depending on available stock.

N°6 Stud fine thread for valve cover until 2005 for the upper engine (carburetor part) N°6 Stud fine thread for valve cover until 2005 for the upper engine (carburetor part)
N°6 Stud fine thread for valve cover until 2005 for the upper engine (carburetor part)
9,00 €

Ural part n°6 on the upper engine diagram

Stud fine thread for valve cover until 2005 for the upper engine (carburetor part)

  • Part number : 009414-P29

Please note that delivery times may vary depending on available stock.

7 - IMZ-8.108-01305

8 - 2 Variants

9 - 2 Variants

10 & 18 - E03502

N°9 Valve cover until 2018 for upper engine (carburetor part) N°9 Valve cover until 2018 for upper engine (carburetor part) N°9 Valve cover until 2018 for upper engine (carburetor part)
N°9 Valve cover until 2018 for upper engine (carburetor part)
à partir de 66,00 €

Ural part n°9 on the upper engine diagram

Valve cover until 2018 for upper engine (carburetor part)

  • Polished : Part number : IMZ-8.103-01515-02

  • Not polished : Part number : IMZ-8.103-01515-04

Please note that delivery times may vary depending on available stock.

N°10/N°18 Washer 8 for the upper engine (carburetor part) N°10/N°18 Washer 8 for the upper engine (carburetor part)
N°10/N°18 Washer 8 for the upper engine (carburetor part)
1,00 €

Ural part n°10 and part n°18 on the upper engine diagram

Washer 8 for the upper engine (carburetor part)

  • Part number : E03502

Please note that delivery times may vary depending on available stock.

11 - 6201520

12 - 368206-P

N°11 Nut for valve cover for the upper engine (carburetor part) N°11 Nut for valve cover for the upper engine (carburetor part) N°11 Nut for valve cover for the upper engine (carburetor part)
N°11 Nut for valve cover for the upper engine (carburetor part)
12,00 €

Ural part n°11 on the upper engine diagram

Nut for valve cover for the upper engine (carburetor part)

  1. Model year until 2005 : Part number : 6201520

  2. Model year since 2006 : Part number : 6201520-01

Please note that delivery times may vary depending on available stock.

N°12 Dowel pin 6x14.4 for the upper engine (carburetor part) N°12 Dowel pin 6x14.4 for the upper engine (carburetor part)
N°12 Dowel pin 6x14.4 for the upper engine (carburetor part)
5,00 €

Ural part n°12 on the upper engine diagram

Dowel pin 6x14.4 for the upper engine (carburetor part)

  • Part number : 368206-P

Please note that delivery times may vary depending on available stock.

13 - IMZ-8.128-01505-10

14 - IMZ-8.128-01309

N°13 Valve guide since 2008 for the upper engine (carburetor part) N°13 Valve guide since 2008 for the upper engine (carburetor part)
N°13 Valve guide since 2008 for the upper engine (carburetor part)
13,00 €

Ural part n°13 on the high engine diagram

Valve guide since 2008 for the upper engine (carburetor part)

  • Part number : IMZ-8.128-01505-10

Please note that delivery times may vary depending on available stock.

N°14 Rubber cap for push rod tube for upper engine (carburetor part) N°14 Rubber cap for push rod tube for upper engine (carburetor part)
Sur commande
N°14 Rubber cap for push rod tube for upper engine (carburetor part)
10,00 €

Ural part n°14 on the upper engine diagram

Rubber cap for push rod tube for upper engine (carburetor part)

  • Part number : IMZ-8.128-01309

Please note that delivery times may vary depending on available stock.

N°17 Cylinder head fastening nut for upper engine (carburetor part) N°17 Cylinder head fastening nut for upper engine (carburetor part) N°17 Cylinder head fastening nut for upper engine (carburetor part)
N°17 Cylinder head fastening nut for upper engine (carburetor part)
à partir de 6,00 €

Ural part n°17 on the upper engine diagram

Cylinder head fastening nut for upper engine (carburetor part)

  • Italian origin : Part number : IMZ-8.128-01447

  • Russian origin : Part number : IMZ-8.103-01447

Please note that delivery times may vary depending on available stock.

N°17 Nut M8x1 to cylinder head fastening stud for the upper engine (carbretor part) N°17 Nut M8x1 to cylinder head fastening stud for the upper engine (carbretor part)
N°17 Nut M8x1 to cylinder head fastening stud for the upper engine (carbretor part)
6,00 €

Ural part n°17 on the upper engine diagram

Nut M8x1 to cylinder head fastening stud for the upper engine (carbretor part)

  • Part number : 6201447

Please note that delivery times may vary depending on available stock.

19 - E00861

20 - E42720

N°21 Nut M10x1 for the upper engine (carburetor part) N°21 Nut M10x1 for the upper engine (carburetor part)
N°21 Nut M10x1 for the upper engine (carburetor part)
4,00 €

Ural part n°21 on the upper engine diagram

Nut M10x1 for the upper engine (carburetor part)

  • Part number : E00862

Please note that delivery times may vary depending on available stock.

N°23 External bushing for branch pipe until 2005 for upper engine (carburetor part) N°23 External bushing for branch pipe until 2005 for upper engine (carburetor part)
N°23 External bushing for branch pipe until 2005 for upper engine (carburetor part)
20,00 €

Ural part n°23 on the upper engine diagram

External bushing for branch pipe until 2005 for upper engine (carburetor part)

  • Part number : 6201509

Please note that delivery times may vary depending on available stock.

24 - E42719

25 - E00911

N°24 Stud M8x16 for upper engine (carburetor part) N°24 Stud M8x16 for upper engine (carburetor part)
N°24 Stud M8x16 for upper engine (carburetor part)
11,00 €

Ural part n°24 on the upper engine diagram

Stud M8x16 for upper engine (carburetor part)

  • Part number : E42719

Please note that delivery times may vary depending on available stock.

N°25 Nut M8 for the upper engine (carburetor part) N°25 Nut M8 for the upper engine (carburetor part)
N°25 Nut M8 for the upper engine (carburetor part)
2,00 €

Ural part n°25 on the upper engine diagram

Nut M8 for the upper engine (carburetor part)

  • Part number : E00911

Please note that delivery times may vary depending on available stock.

28 - IMZ-8.128-01506

29 - IMZ-8.128-01801

N°28 Valve shaft sealing since 2008 for the upper engine (carburetor part) N°28 Valve shaft sealing since 2008 for the upper engine (carburetor part)
N°28 Valve shaft sealing since 2008 for the upper engine (carburetor part)
8,00 €

Ural part n°28 on the upper engine diagram

Valve shaft sealing since 2008 for the upper engine (carburetor part)

  • Part number : IMZ-8.128-01506

Please note that delivery times may vary depending on available stock.

N°29 Valve guide ring since 2008 for the upper engine (carburetor part) N°29 Valve guide ring since 2008 for the upper engine (carburetor part)
N°29 Valve guide ring since 2008 for the upper engine (carburetor part)
2,00 €

Ural part n°29 on the upper engine diagram

Valve guide ring since 2008 for the upper engine (carburetor part)

  • Part number : IMZ-8.128-01801

Please note that delivery times may vary depending on available stock.

1 - 2 Variants

1 - IMZ-8.101-01052-20

N°1 Left cylinder head assembly since 2008 for upper engine (cabruretor part) N°1 Left cylinder head assembly since 2008 for upper engine (cabruretor part) N°1 Left cylinder head assembly since 2008 for upper engine (cabruretor part)
N°1 Left cylinder head assembly since 2008 for upper engine (cabruretor part)
580,00 €

Ural part n°1 on the upper engine diagram

Left cylinder head assembly since 2008 for upper engine (cabruretor part)

  • With SAS : Part number : IMZ-8.128-01052-40

  • Without SAS : Part number : IMZ-8.128-01052-30

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°1 Left cylinder head assembly for upper engine (carburetor part) N°1 Left cylinder head assembly for upper engine (carburetor part)
N°1 Left cylinder head assembly for upper engine (carburetor part)
410,00 €

Ural part n°1 on the upper engine diagram

Left cylinder head assembly for upper engine (carburetor part)

  • Part number : IMZ-8.101-01052-20

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

2 - 12 Variants

2 - T11328-Q

N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part) N°2 Cylinder assembly until 2018 for upper engine (carburetor part)
N°2 Cylinder assembly until 2018 for upper engine (carburetor part)
à partir de 310,00 €

Ural part n°2 on the upper engine diagram

Cylinder assembly until 2018 for upper engine (carburetor part)

  1. Grey color with SAS bores and size A : Part number : IMZ-8.128-01031-10/A

  2. Grey color with SAS bores and size B : Part number : IMZ-8.128-01031-10/B

  3. Grey color with SAS bores and size C : Part number : IMZ-8.128-01031-10/C

  4. Grey color without SAS bores and size A : Part number : IMZ-8.108-01031-10A

  5. Grey color without SAS bores and size B : Part number : IMZ-8.108-01031-10B

  6. Grey color without SAS bores and size C : Part number : IMZ-8.108-01031-10C

  7. Black color with SAS bores and size A : Part number : IMZ-8.128-01031-10/A-BL

  8. Black color with SAS bores and size B : Part number : IMZ-8.128-01031-10/B-BL

  9. Black color with SAS bores and size C : Part number : IMZ-8.128-01031-10/C-BL

  10. Black color without SAS bores and size A : Part number : IMZ-8.108-01031-10A-BL

  11. Black color without SAS bores and size B : Part number : IMZ-8.108-01031-10B-BL

  12. Black color without SAS bores and size C : Part number : IMZ-8.108-01031-10C-BL

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

N°2 Cylinder including piston, rings, pin for upper engine (carburetor part) N°2 Cylinder including piston, rings, pin for upper engine (carburetor part)
N°2 Cylinder including piston, rings, pin for upper engine (carburetor part)
390,00 €

Ural part n°2 on the upper engine diagram

Cylinder including piston, rings, pin for upper engine (carburetor part)

  • Part number : T11328-Q

Please note that delivery times may vary depending on available stock.

Refund insurance is included in the shipping costs in case your package is lost.

3 - 2 Variants

3 - 2 Variants

N°8 Cylinder foot gasket for upper engine (carburetor part) N°8 Cylinder foot gasket for upper engine (carburetor part) N°8 Cylinder foot gasket for upper engine (carburetor part)
N°8 Cylinder foot gasket for upper engine (carburetor part)
à partir de 6,00 €

Ural part n°8 on the upper engine diagram

Cylinder foot gasket for upper engine (carburetor part)

  • 650 cc engine : Part number : 6201303-10

  • 750 cc engine : Part number : IMZ-8.1037-01303

Please note that delivery times may vary depending on available stock.

N°7 Cylinder head fastening stud short for the upper engine (carburetor part) N°7 Cylinder head fastening stud short for the upper engine (carburetor part)
N°7 Cylinder head fastening stud short for the upper engine (carburetor part)
14,00 €

Ural part n°7 on the upper engine diagram

Cylinder head fastening stud short for the upper engine (carburetor part)

  • Part number : IMZ-8.108-01305

Please note that delivery times may vary depending on available stock.

16 - 2 Variants

15 - IMZ-8.108-01039-01

N°16 Cylinder head gasket for the upper engine (carburetor part) N°16 Cylinder head gasket for the upper engine (carburetor part) N°16 Cylinder head gasket for the upper engine (carburetor part)
N°16 Cylinder head gasket for the upper engine (carburetor part)
23,00 €

Ural part n°16 on the upper engine diagram

Cylinder head gasket for the upper engine (carburetor part)

  • 650 cc engine : Part number : 6201504-01

  • 750 cc engine : Part number : IMZ-8.128-01504

Please note that delivery times may vary depending on available stock.

N°15 Push rod tube until 2018 for upper engine (carburetor part) N°15 Push rod tube until 2018 for upper engine (carburetor part)
N°15 Push rod tube until 2018 for upper engine (carburetor part)
27,00 €

Ural part n°15 on the upper engine diagram

Push rod tube until 2018 for upper engine (carburetor part)

  • Part number : IMZ-8.108-01039-01

Please note that delivery times may vary depending on available stock.

17 - 6201447

17 - 2 Variants

N°20 Stud M8x1-6gx21 until 2005 for the upper engine (carburetor part) N°20 Stud M8x1-6gx21 until 2005 for the upper engine (carburetor part)
N°20 Stud M8x1-6gx21 until 2005 for the upper engine (carburetor part)
4,00 €

Ural part n°20 on the upper engine diagram

Stud M8x1-6gx21 until 2005 for the upper engine (carburetor part)

  • Part number : E42720

Please note that delivery times may vary depending on available stock.

N°19 Nut M8x1-6H for the upper engine (carburetor part) N°19 Nut M8x1-6H for the upper engine (carburetor part)
N°19 Nut M8x1-6H for the upper engine (carburetor part)
4,00 €

Ural part n°19 on the upper engine diagram

Nut M8x1-6H for the upper engine (carburetor part)

  1. Part number : E00861

Please note that delivery times may vary depending on available stock.

23 - 6201509

21 - E00862

27 - IMZ-8.103-01508

26 - IMZ-8.1236-12155

N°27 Centering bushing for rocker system for the upper engine (carburetor part) N°27 Centering bushing for rocker system for the upper engine (carburetor part) N°27 Centering bushing for rocker system for the upper engine (carburetor part)
N°27 Centering bushing for rocker system for the upper engine (carburetor part)
3,00 €

Ural part n°27 on the upper engine diagram

Centering bushing for rocker system for the upper engine (carburetor part)

  1. 750 cc engine : Part number : IMZ-8.103-01508

  2. 650 cc engine : Part number : IMZ-8.101-01508

Please note that delivery times may vary depending on available stock.

N°26 Exhaust manifold seal 2006-2015 for the upper engine (carburetor part) N°26 Exhaust manifold seal 2006-2015 for the upper engine (carburetor part)
N°26 Exhaust manifold seal 2006-2015 for the upper engine (carburetor part)
6,00 €

Ural part n°26 on the upper engine diagram

Exhaust manifold seal 2006-2015 for the upper engine (carburetor part)

  • Part number : IMZ-8.1236-12155

Please note that delivery times may vary depending on available stock.
